NA 6901UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - NA 6901UU IKO
Also Known As - NA6901UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 24
Boundary Dimension (C) mm - 22
Boundary Dimension (B) mm - 23
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 16
Miniimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 15
Maximum Standard Mounting Dimension (Da) mm - 22
Basic Dynamic Load Rating (C) N - 15500
Basic Static Load Rating (C0) N - 20400
Allowable Rotational Speed (min-1) - 12000
Assembled Inner Ring - LRTZ 121623
Weight (kg) - 0.0455
Bearing with One Seal - NA 6901U

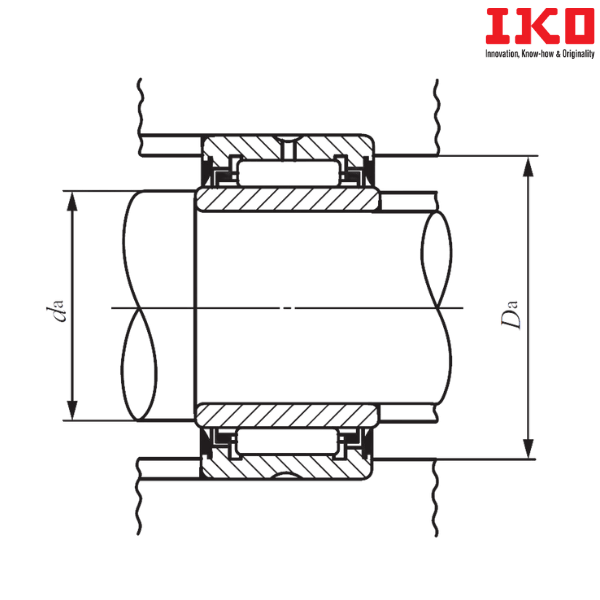

** Images are for representation purposes only
