Description
Brand - IKO
Item Number - NA 69/28UU IKO
Also Known As - NA69/28UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 28
Bore Diameter (d) mm - 28
Outer Diameter (D) mm - 45
Boundary Dimension (C) mm - 30
Boundary Dimension (B) mm - 31
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 32

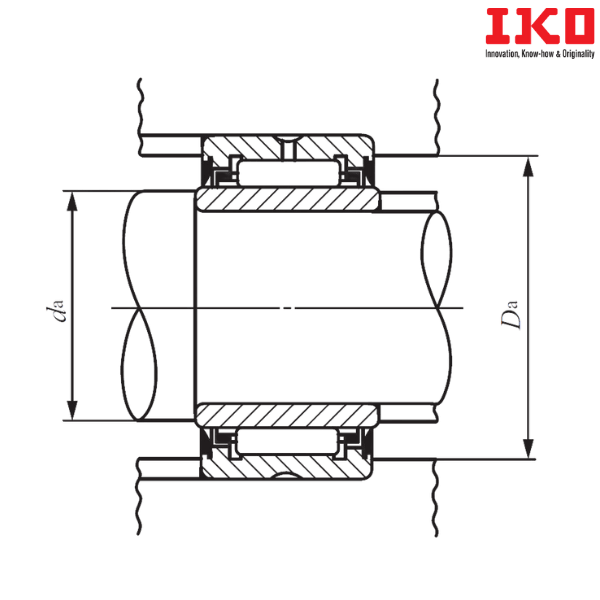

Miniimum Standard Mounting Dimension (da) mm - 30
Maximum Standard Mounting Dimension (da) mm - 31
Maximum Standard Mounting Dimension (Da) mm - 43
Basic Dynamic Load Rating (C) N - 38900
Basic Static Load Rating (C0) N - 59100
Allowable Rotational Speed (min-1) - 6000
Assembled Inner Ring - LRTZ 283231
Weight (kg) - 0.177
Bearing with One Seal - NA 69/28U
** Images are for representation purposes only
