Description
Brand - IKO
Item Number - NA 69/22UU IKO
Also Known As - NA69/22UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 22
Bore Diameter (d) mm - 22
Outer Diameter (D) mm - 39
Boundary Dimension (C) mm - 30
Boundary Dimension (B) mm - 31
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 28
Miniimum Standard Mounting Dimension (da) mm - 24
Maximum Standard Mounting Dimension (da) mm - 27
Maximum Standard Mounting Dimension (Da) mm - 37
Basic Dynamic Load Rating (C) N - 33800
Basic Static Load Rating (C0) N - 52000
Allowable Rotational Speed (min-1) - 7000
Assembled Inner Ring - LRTZ 222831
Weight (kg) - 0.153
Bearing with One Seal - NA 69/22U

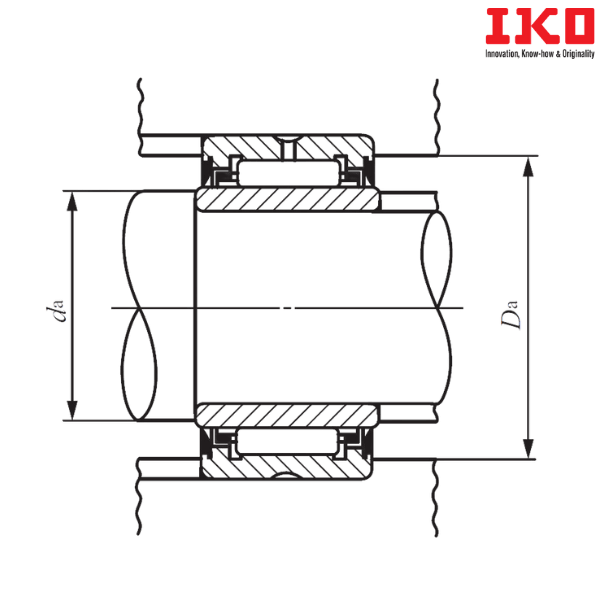

** Images are for representation purposes only
