Description
Brand - IKO
Item Number - NA 496 IKO
Also Known As - NA496
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 6
Bore Diameter (d) mm - 6
Outer Diameter (D) mm - 15
Boundary Dimension (C) mm - 10
Minimum Boundary Dimension (rs) mm - 0.15
Boundary Dimension (Fw) mm - 8

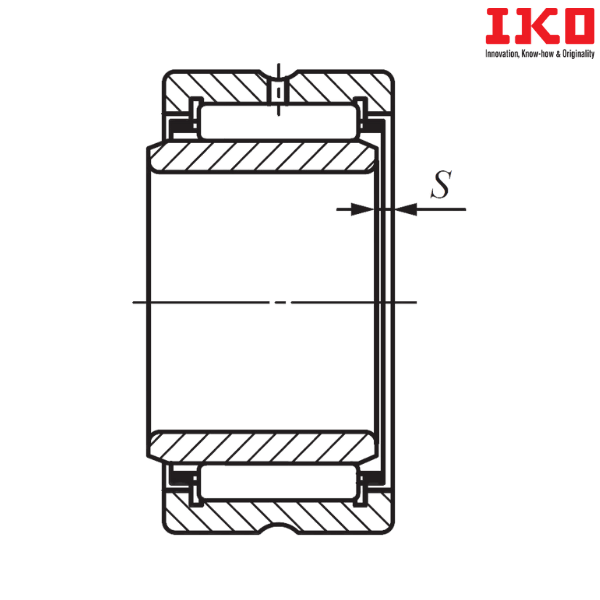

Boundary Dimension (S) mm - 0.5

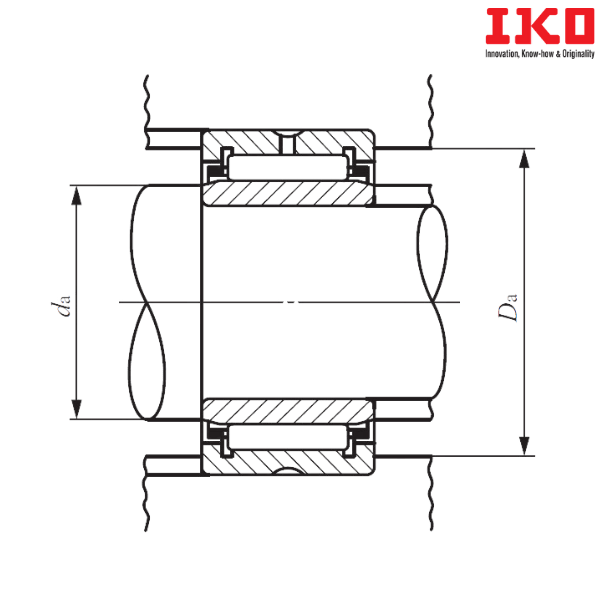

Minimum Standard Mounting Dimension (da) mm - 7.2
Maximum Standard Mounting Dimension (da) mm - 7.7
Maximum Standard Mounting Dimension (Da) mm - 13.8
Basic Dynamic Load Rating (C) N - 3960
Basic Static Load Rating (C0) N - 3420
Allowable Rotational Speed (min-1) - 50000
Assembled Inner Ring - LRT 6810
Weight (kg) - 0.0091
** Images are for representation purposes only
