Description
Brand - IKO
Item Number - NA 4922UU IKO
Also Known As - NA4922UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 110
Bore Diameter (d) mm - 110
Outer Diameter (D) mm - 150
Boundary Dimension (C) mm - 40
Boundary Dimension (B) mm - 41
Minimum Boundary Dimension (rs) mm - 1.1
Boundary Dimension (Fw) mm - 125

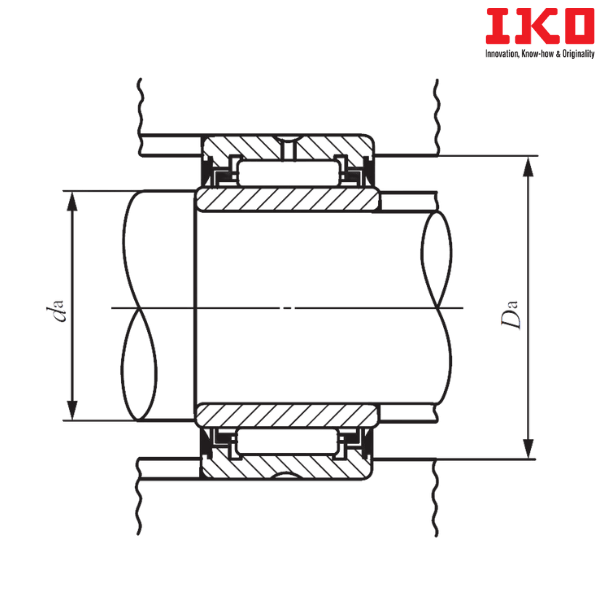

Miniimum Standard Mounting Dimension (da) mm - 116.5
Maximum Standard Mounting Dimension (da) mm - 123
Maximum Standard Mounting Dimension (Da) mm - 143.5
Basic Dynamic Load Rating (C) N - 140000
Basic Static Load Rating (C0) N - 322000
Allowable Rotational Speed (min-1) - 1500
Assembled Inner Ring - LRTZ 11012541
Weight (kg) - 2.15
Bearing with One Seal - NA 4922U
** Images are for representation purposes only
