Description
Brand - IKO
Item Number - NA 4917 IKO
Also Known As - NA4917
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 85
Bore Diameter (d) mm - 85
Outer Diameter (D) mm - 120
Boundary Dimension (C) mm - 35
Minimum Boundary Dimension (rs) mm - 1.1
Boundary Dimension (Fw) mm - 100

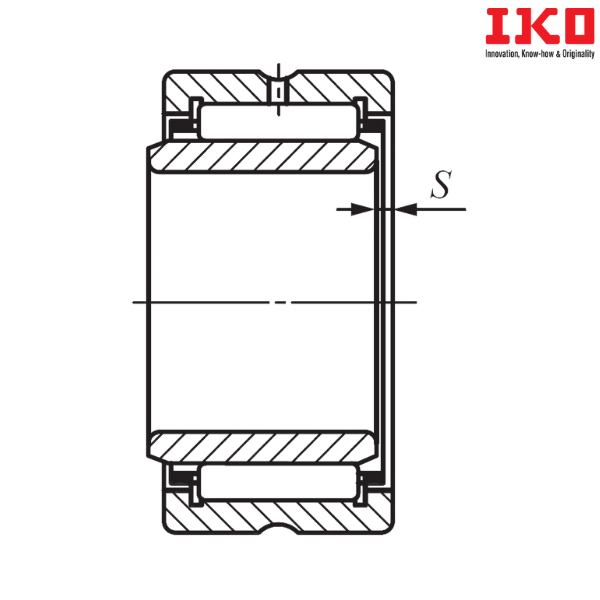

Boundary Dimension (S) mm - 1

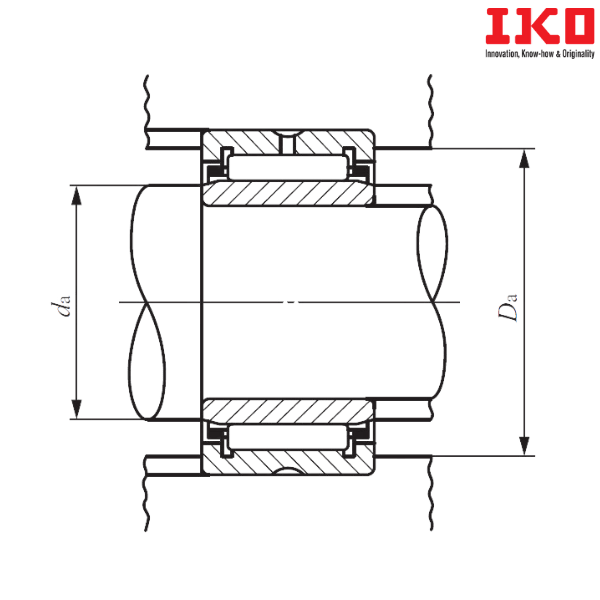

Minimum Standard Mounting Dimension (da) mm - 91.5
Maximum Standard Mounting Dimension (da) mm - 98
Maximum Standard Mounting Dimension (Da) mm - 113.5
Basic Dynamic Load Rating (C) N - 110000
Basic Static Load Rating (C0) N - 244000
Allowable Rotational Speed (min-1) - 4000
Assembled Inner Ring - LRT 8510035
Weight (kg) - 1.28
** Images are for representation purposes only
