Description
Brand - IKO
Item Number - NA 4916UU IKO
Also Known As - NA4916UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 80
Bore Diameter (d) mm - 80
Outer Diameter (D) mm - 110
Boundary Dimension (C) mm - 30
Boundary Dimension (B) mm - 31
Minimum Boundary Dimension (rs) mm - 1
Boundary Dimension (Fw) mm - 90

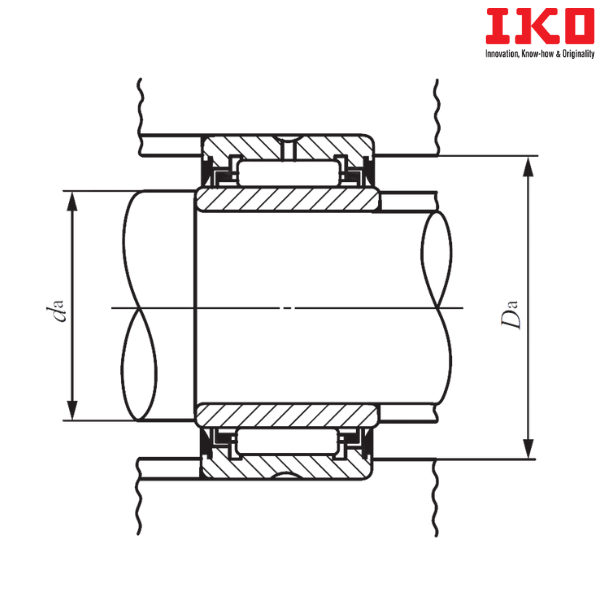

Miniimum Standard Mounting Dimension (da) mm - 85
Maximum Standard Mounting Dimension (da) mm - 88
Maximum Standard Mounting Dimension (Da) mm - 105
Basic Dynamic Load Rating (C) N - 80700
Basic Static Load Rating (C0) N - 158000
Allowable Rotational Speed (min-1) - 2000
Assembled Inner Ring - LRTZ 809031
Weight (kg) - 0.86
Bearing with One Seal - NA 4916U
** Images are for representation purposes only
