NA 4913UU IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - NA 4913UU IKO
Also Known As - NA4913UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 65
Bore Diameter (d) mm - 65
Outer Diameter (D) mm - 90
Boundary Dimension (C) mm - 25
Boundary Dimension (B) mm - 26
Minimum Boundary Dimension (rs) mm - 1
Boundary Dimension (Fw) mm - 72

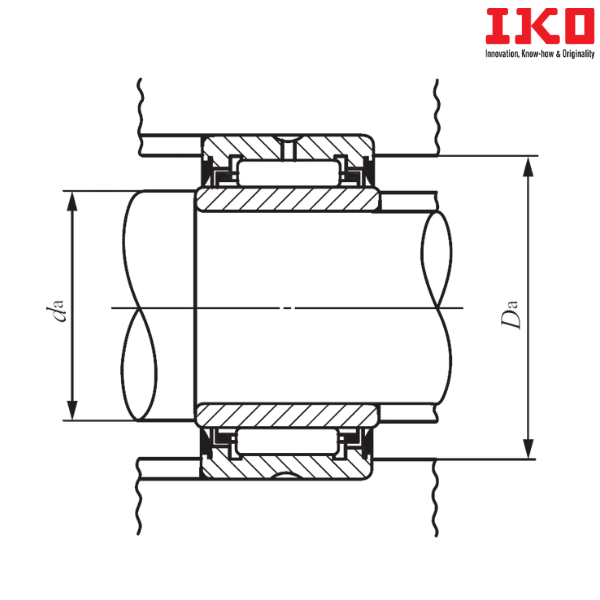

Miniimum Standard Mounting Dimension (da) mm - 70
Maximum Standard Mounting Dimension (da) mm - 70.5
Maximum Standard Mounting Dimension (Da) mm - 85
Basic Dynamic Load Rating (C) N - 56800
Basic Static Load Rating (C0) N - 99800
Allowable Rotational Speed (min-1) - 2500
Assembled Inner Ring - LRTZ 657226
Weight (kg) - 0.475
Bearing with One Seal - NA 4913U

** Images are for representation purposes only
