Description
Brand - IKO
Item Number - NA 4912 IKO
Also Known As - NA4912
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 60
Bore Diameter (d) mm - 60
Outer Diameter (D) mm - 85
Boundary Dimension (C) mm - 25
Minimum Boundary Dimension (rs) mm - 1
Boundary Dimension (Fw) mm - 68

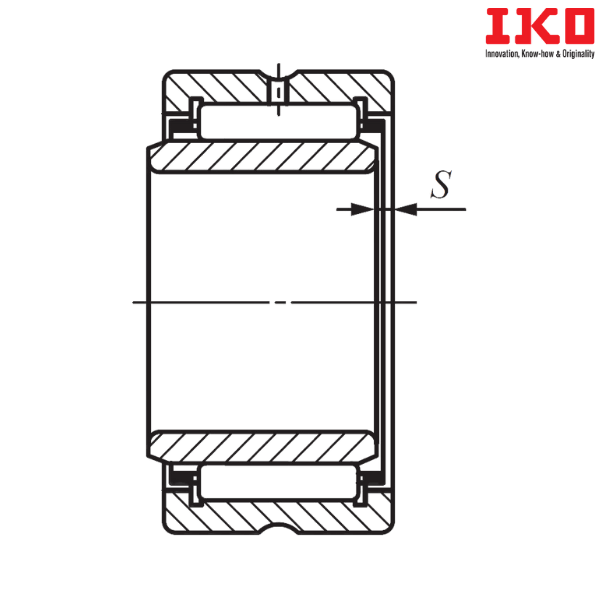

Boundary Dimension (S) mm - 1

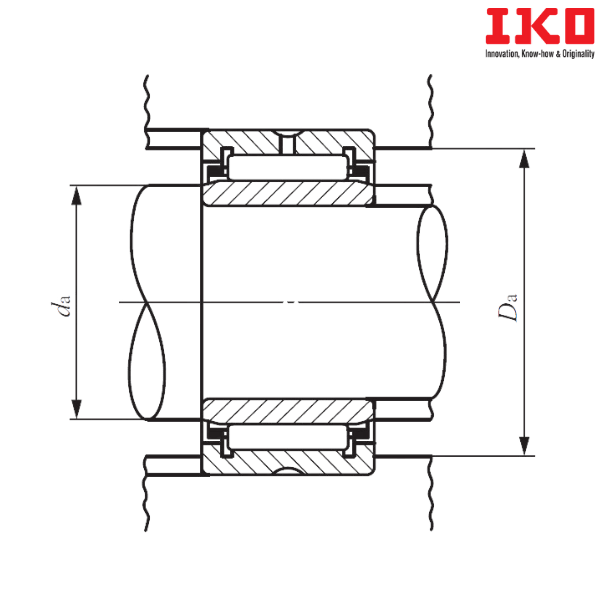

Minimum Standard Mounting Dimension (da) mm - 65
Maximum Standard Mounting Dimension (da) mm - 66
Maximum Standard Mounting Dimension (Da) mm - 80
Basic Dynamic Load Rating (C) N - 60200
Basic Static Load Rating (C0) N - 105000
Allowable Rotational Speed (min-1) - 6000
Assembled Inner Ring - LRT 606825-1
Weight (kg) - 0.44
** Images are for representation purposes only
