Description
Brand - IKO
Item Number - NA 4911 IKO
Also Known As - NA4911
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 55
Bore Diameter (d) mm - 55
Outer Diameter (D) mm - 80
Boundary Dimension (C) mm - 25
Minimum Boundary Dimension (rs) mm - 1
Boundary Dimension (Fw) mm - 63
Boundary Dimension (S) mm - 1

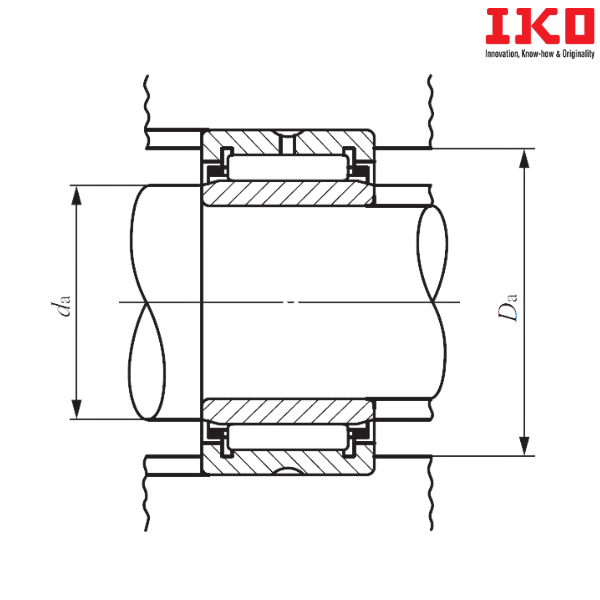

Minimum Standard Mounting Dimension (da) mm - 60
Maximum Standard Mounting Dimension (da) mm - 61
Maximum Standard Mounting Dimension (Da) mm - 75
Basic Dynamic Load Rating (C) N - 57600
Basic Static Load Rating (C0) N - 97200
Allowable Rotational Speed (min-1) - 6500
Assembled Inner Ring - LRT 556325
Weight (kg) - 0.41
** Images are for representation purposes only
