Description
Brand - IKO
Item Number - NA 4910UU IKO
Also Known As - NA4910UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 72
Boundary Dimension (C) mm - 22
Boundary Dimension (B) mm - 23
Minimum Boundary Dimension (rs) mm - 0.6
Boundary Dimension (Fw) mm - 58
Miniimum Standard Mounting Dimension (da) mm - 54
Maximum Standard Mounting Dimension (da) mm - 57
Maximum Standard Mounting Dimension (Da) mm - 68
Basic Dynamic Load Rating (C) N - 41300
Basic Static Load Rating (C0) N - 71100
Allowable Rotational Speed (min-1) - 3500
Assembled Inner Ring - LRTZ 505823
Weight (kg) - 0.295
Bearing with One Seal - NA 4910U

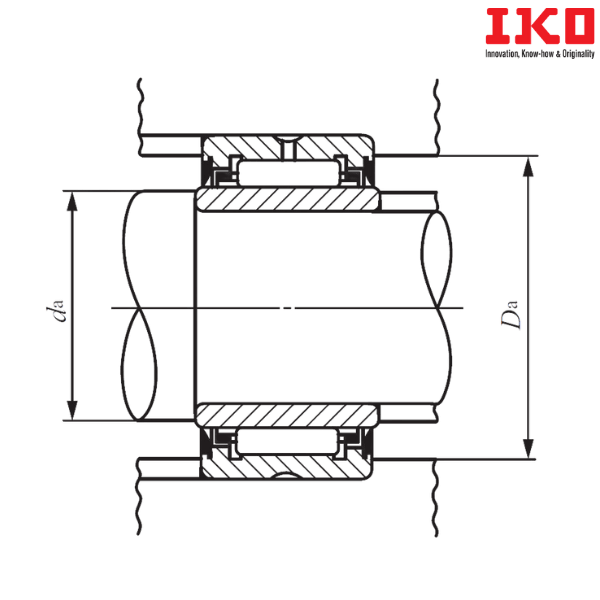

** Images are for representation purposes only
