Description
Brand - IKO
Item Number - NA 4908 IKO
Also Known As - NA4908
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 40
Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 62
Boundary Dimension (C) mm - 22
Minimum Boundary Dimension (rs) mm - 0.6
Boundary Dimension (Fw) mm - 48

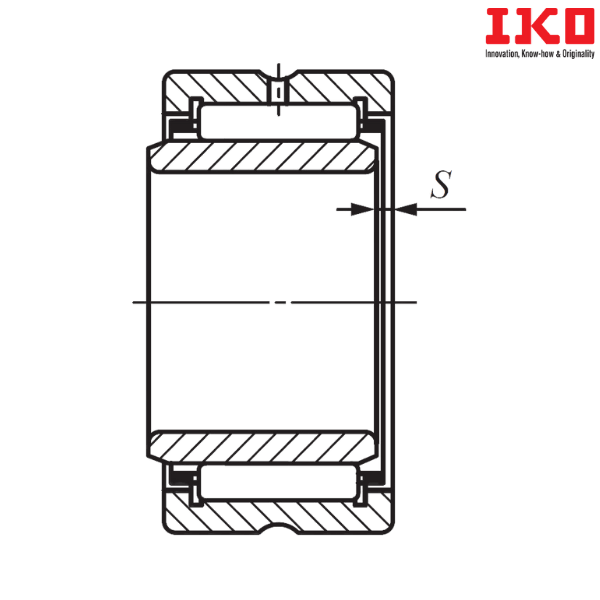

Boundary Dimension (S) mm - 0.5

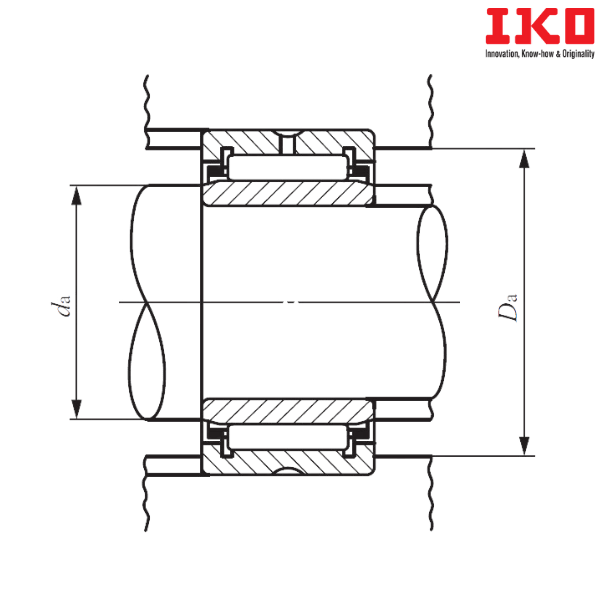

Minimum Standard Mounting Dimension (da) mm - 44
Maximum Standard Mounting Dimension (da) mm - 47
Maximum Standard Mounting Dimension (Da) mm - 58
Basic Dynamic Load Rating (C) N - 41600
Basic Static Load Rating (C0) N - 67400
Allowable Rotational Speed (min-1) - 8500
Assembled Inner Ring - LRT 404822
Weight (kg) - 0.245
** Images are for representation purposes only
