Description
Brand - IKO
Item Number - NA 4906 IKO
Also Known As - NA4906
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 47
Boundary Dimension (C) mm - 17
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 35

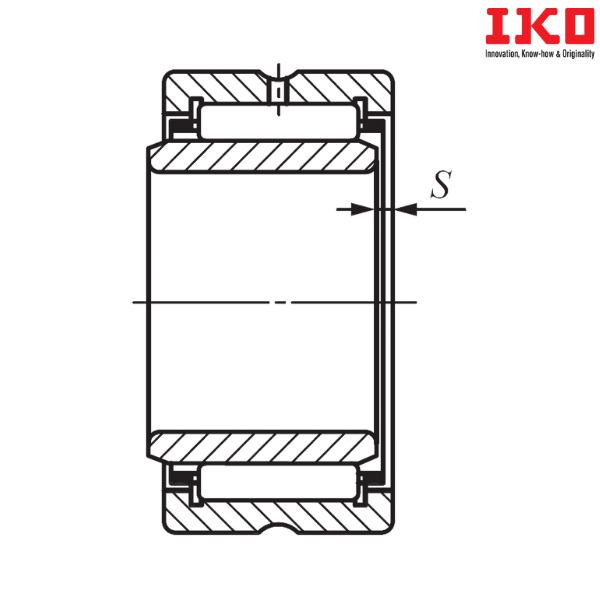

Boundary Dimension (S) mm - 0.5

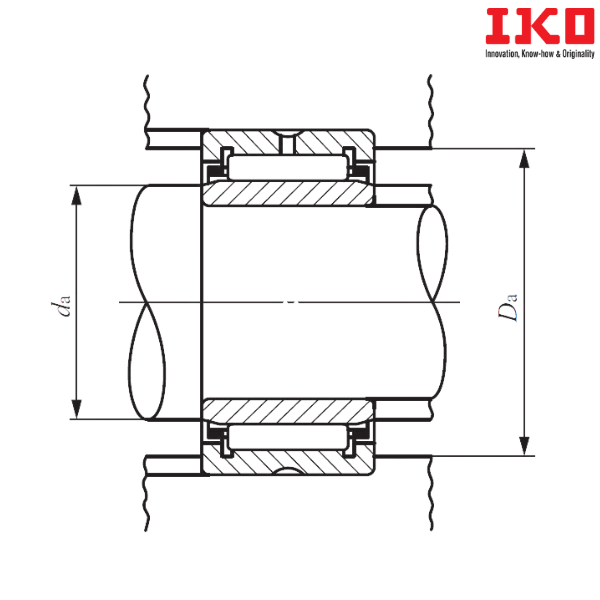

Minimum Standard Mounting Dimension (da) mm - 32
Maximum Standard Mounting Dimension (da) mm - 34
Maximum Standard Mounting Dimension (Da) mm - 45
Basic Dynamic Load Rating (C) N - 25200
Basic Static Load Rating (C0) N - 34700
Allowable Rotational Speed (min-1) - 11000
Assembled Inner Ring - LRT 303517
Weight (kg) - 0.106
** Images are for representation purposes only
