Description
Brand - IKO
Item Number - NA 4904 IKO
Also Known As - NA4904
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 20
Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 37
Boundary Dimension (C) mm - 17
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 25

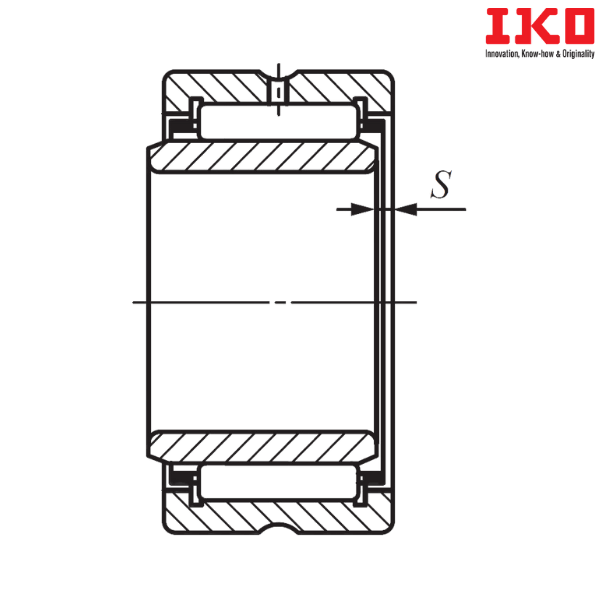

Boundary Dimension (S) mm - 0.5

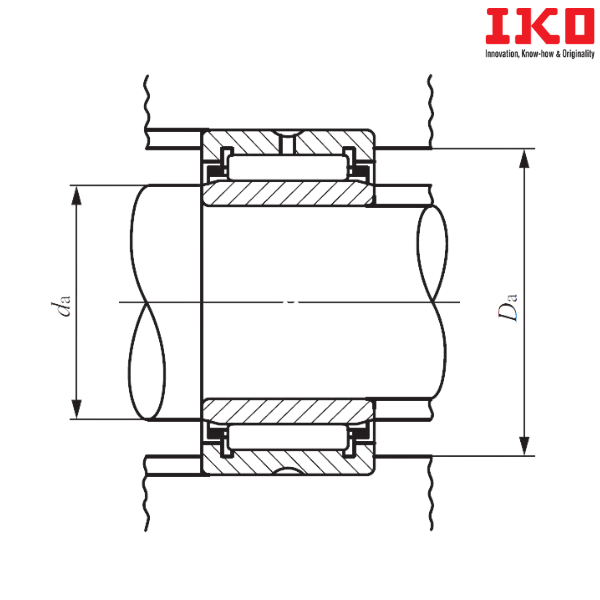

Minimum Standard Mounting Dimension (da) mm - 22
Maximum Standard Mounting Dimension (da) mm - 24
Maximum Standard Mounting Dimension (Da) mm - 35
Basic Dynamic Load Rating (C) N - 21000
Basic Static Load Rating (C0) N - 25000
Allowable Rotational Speed (min-1) - 16000
Assembled Inner Ring - LRT 202517
Weight (kg) - 0.0785
** Images are for representation purposes only
