Description
Brand - IKO
Item Number - NA 4902UU IKO
Also Known As - NA4902UU
Category - Machined Type Needle Roller Bearing with Seal with Inner Ring
Seal - Two Seals
Shaft Diameter (mm) - 15
Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 28
Boundary Dimension (C) mm - 13
Boundary Dimension (B) mm - 14
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 20
Miniimum Standard Mounting Dimension (da) mm - 17
Maximum Standard Mounting Dimension (da) mm - 19
Maximum Standard Mounting Dimension (Da) mm - 26
Basic Dynamic Load Rating (C) N - 9570
Basic Static Load Rating (C0) N - 11600
Allowable Rotational Speed (min-1) - 9500
Assembled Inner Ring - LRTZ 152014
Weight (kg) - 0.036
Bearing with One Seal - NA 4902U

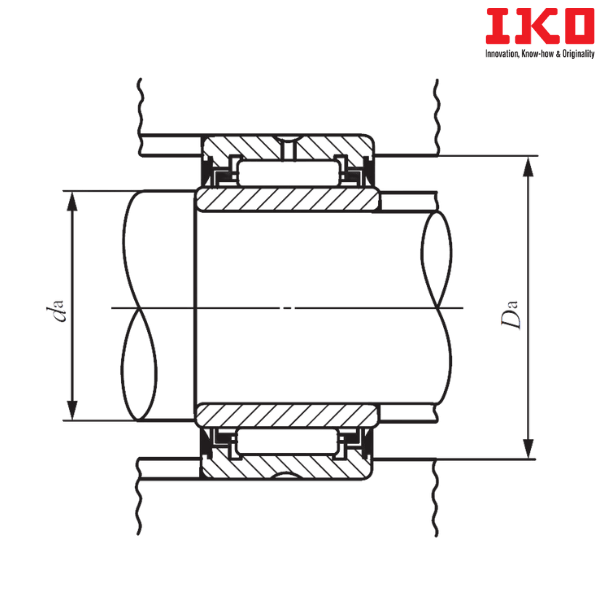

** Images are for representation purposes only
