Description
Brand - IKO
Item Number - NA 4901 IKO
Also Known As - NA4901
Category - Machined Type Needle Roller Bearing with Inner Ring
Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 24
Boundary Dimension (C) mm - 13
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (Fw) mm - 16

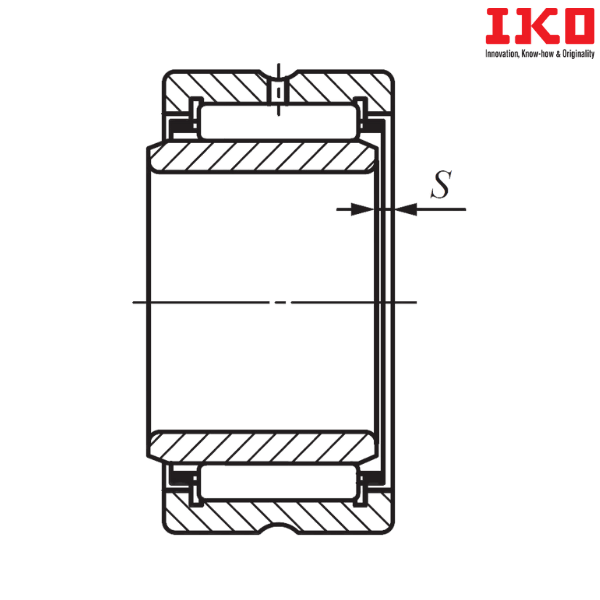

Boundary Dimension (S) mm - 0.5

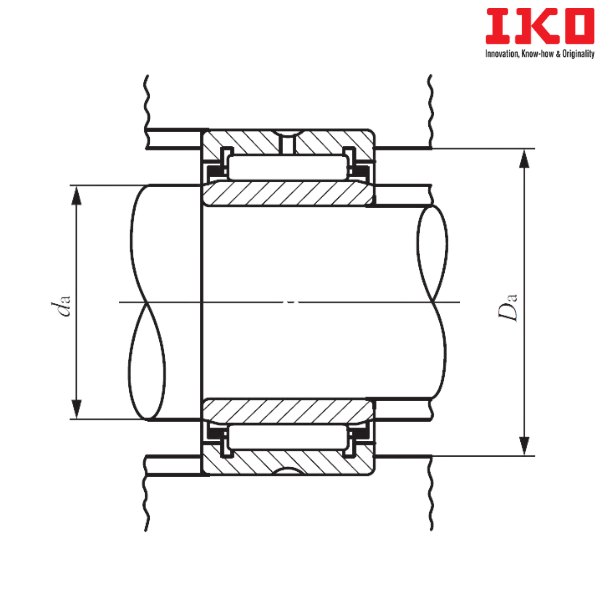

Minimum Standard Mounting Dimension (da) mm - 14
Maximum Standard Mounting Dimension (da) mm - 15
Maximum Standard Mounting Dimension (Da) mm - 22
Basic Dynamic Load Rating (C) N - 9660
Basic Static Load Rating (C0) N - 11100
Allowable Rotational Speed (min-1) - 25000
Assembled Inner Ring - LRT 121613
Weight (kg) - 0.0265
** Images are for representation purposes only
