Description
Brand - NADELLA

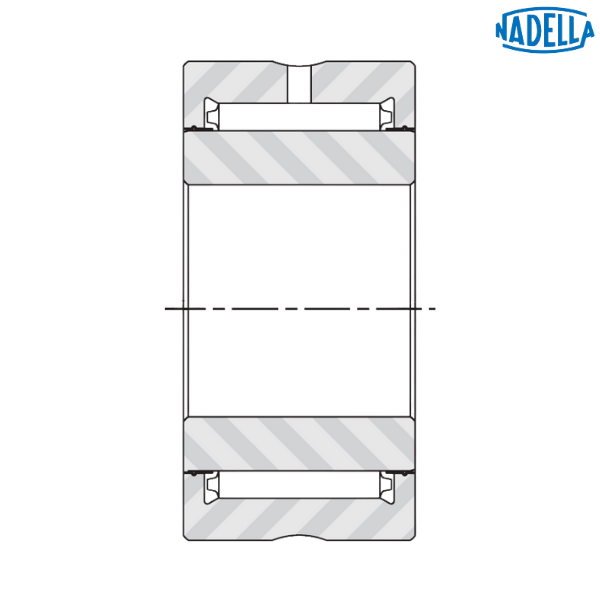

Item Number - NA 3095 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 95 mm
Inner Diameter (d) - 95 mm
Outer Diameter (D) - 140 mm
Width (B) - 43 mm
Dimension (Fw) - 114.7 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 190 kN
Static Load Rating (C0) - 505 kN
Speed Rating with Oil - 3300 rpm
Speed Rating with Grease - 2100 rpm
Weight - 1.551 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
Item Number - NA 3095 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 95 mm
Inner Diameter (d) - 95 mm
Outer Diameter (D) - 140 mm
Width (B) - 43 mm
Dimension (Fw) - 114.7 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 190 kN
Static Load Rating (C0) - 505 kN
Speed Rating with Oil - 3300 rpm
Speed Rating with Grease - 2100 rpm
Weight - 1.551 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
