Description
Brand - NADELLA

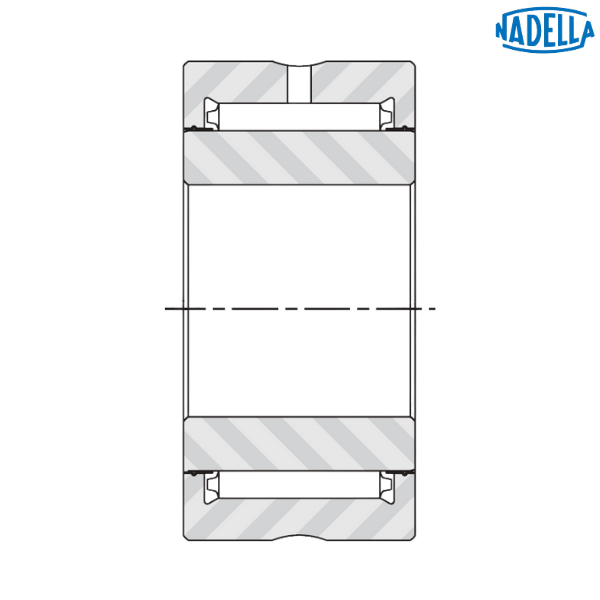

Item Number - NA 3090 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 90 mm
Inner Diameter (d) - 90 mm
Outer Diameter (D) - 135 mm
Width (B) - 43 mm
Dimension (Fw) - 109.7 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 185 kN
Static Load Rating (C0) - 480 kN
Speed Rating with Oil - 3500 rpm
Speed Rating with Grease - 2300 rpm
Weight - 1.522 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring

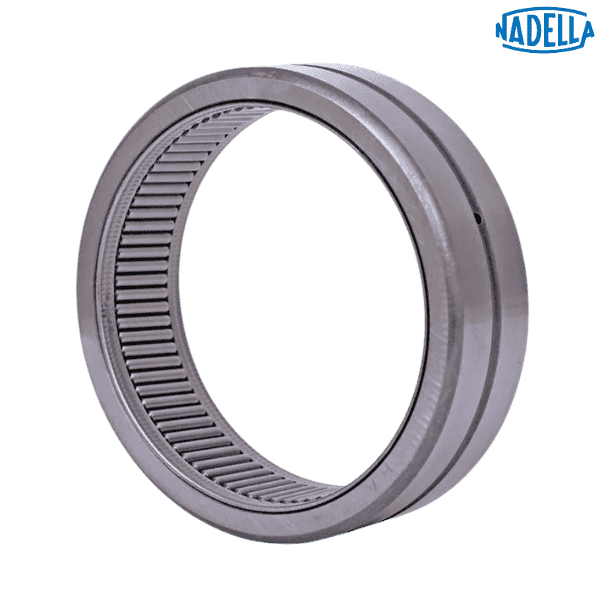

♦ ♦ Images are for representation purposes only
Item Number - NA 3090 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 90 mm
Inner Diameter (d) - 90 mm
Outer Diameter (D) - 135 mm
Width (B) - 43 mm
Dimension (Fw) - 109.7 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 185 kN
Static Load Rating (C0) - 480 kN
Speed Rating with Oil - 3500 rpm
Speed Rating with Grease - 2300 rpm
Weight - 1.522 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
