Description
Brand - NADELLA
Item Number - NA 3080 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 80 mm
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 125 mm
Width (B) - 38 mm
Dimension (Fw) - 99.5 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 145 kN
Static Load Rating (C0) - 365 kN
Speed Rating with Oil - 3800 rpm
Speed Rating with Grease - 2500 rpm
Weight - 1.22 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring

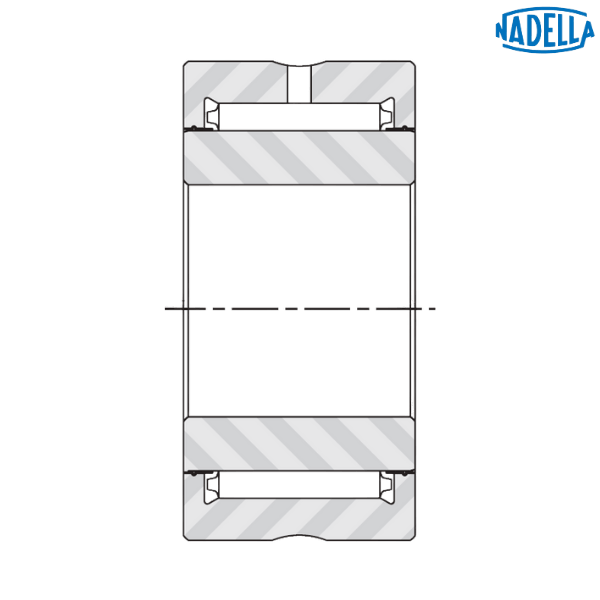

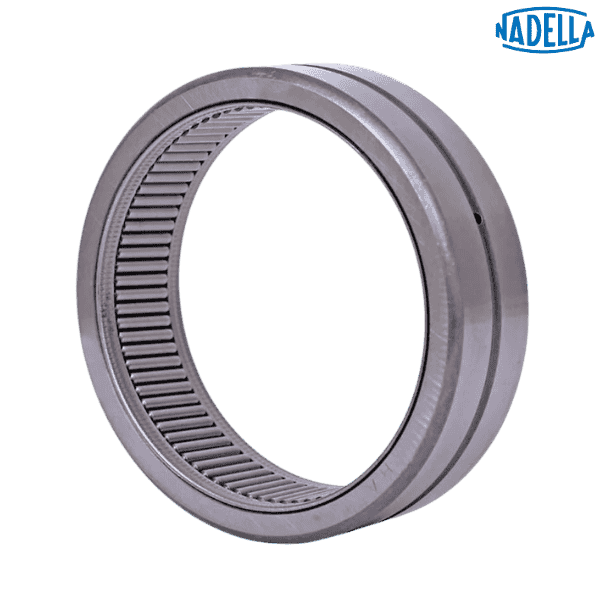

♦ ♦ Images are for representation purposes only
Item Number - NA 3080 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 80 mm
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 125 mm
Width (B) - 38 mm
Dimension (Fw) - 99.5 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 145 kN
Static Load Rating (C0) - 365 kN
Speed Rating with Oil - 3800 rpm
Speed Rating with Grease - 2500 rpm
Weight - 1.22 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
