Description
Brand - NADELLA
Item Number - NA 3070 NADELLA
Category - Full Complement Needle Bearing with Inner Ring

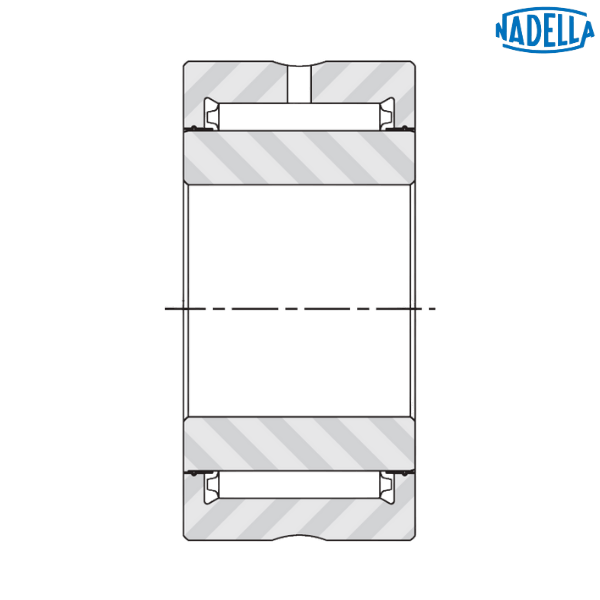

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 70 mm
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 110 mm
Width (B) - 38 mm
Dimension (Fw) - 88 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 134 kN
Static Load Rating (C0) - 325 kN
Speed Rating with Oil - 4300 rpm
Speed Rating with Grease - 2800 rpm
Weight - 0.906 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring

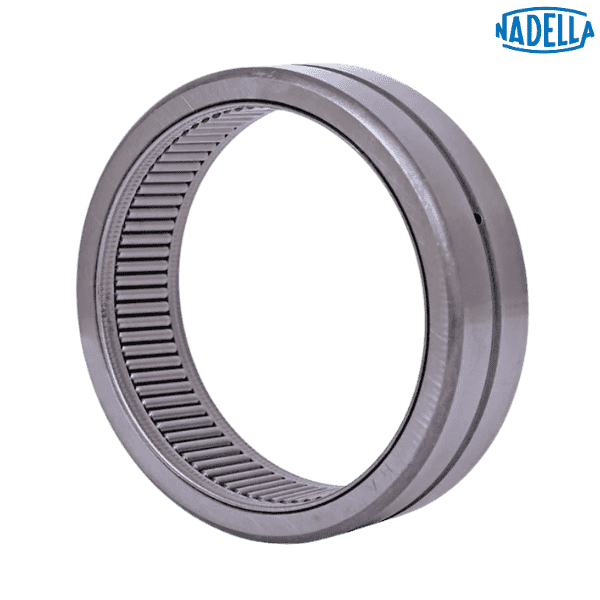

♦ ♦ Images are for representation purposes only
Item Number - NA 3070 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 70 mm
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 110 mm
Width (B) - 38 mm
Dimension (Fw) - 88 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 134 kN
Static Load Rating (C0) - 325 kN
Speed Rating with Oil - 4300 rpm
Speed Rating with Grease - 2800 rpm
Weight - 0.906 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
