Description
Brand - NADELLA
Item Number - NA 3030 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Inner Diameter (d) - 30 mm
Outer Diameter (D) - 62 mm
Width (B) - 30 mm
Dimension (Fw) - 44 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 64 kN
Static Load Rating (C0) - 125 kN
Speed Rating with Oil - 8600 rpm
Speed Rating with Grease - 5600 rpm
Weight - 0.309 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring

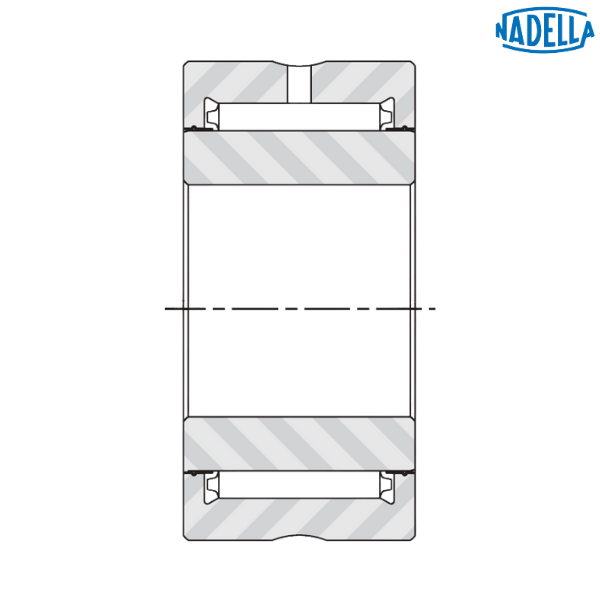

♦ ♦ Images are for representation purposes only
Item Number - NA 3030 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Inner Diameter (d) - 30 mm
Outer Diameter (D) - 62 mm
Width (B) - 30 mm
Dimension (Fw) - 44 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 64 kN
Static Load Rating (C0) - 125 kN
Speed Rating with Oil - 8600 rpm
Speed Rating with Grease - 5600 rpm
Weight - 0.309 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
