Description
Brand - NADELLA
Item Number - NA 2150 NADELLA

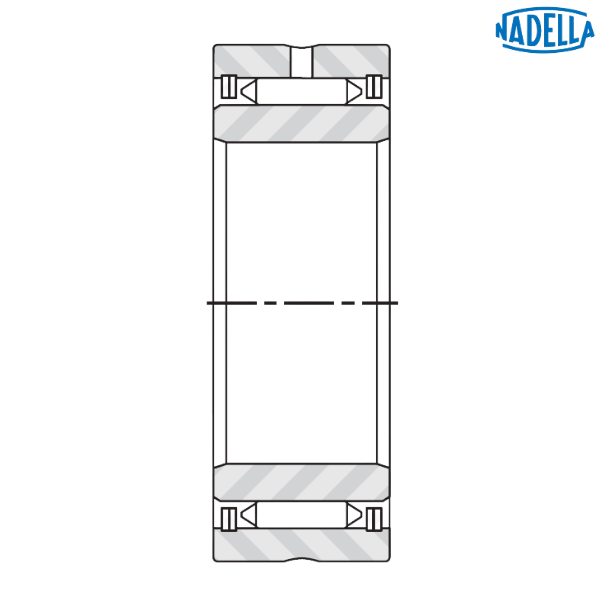

Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 150 mm
Inner Diameter (d) - 150 mm
Outer Diameter (D) - 195 mm
Width (B) - 36 mm
Dimension (Fw) - 170.5 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 134 kN
Static Load Rating (C0) - 325 kN
Speed Rating with Oil - 4300 rpm
Speed Rating with Grease - 2800 rpm
Weight - 0.906 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
Item Number - NA 2150 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 150 mm
Inner Diameter (d) - 150 mm
Outer Diameter (D) - 195 mm
Width (B) - 36 mm
Dimension (Fw) - 170.5 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 134 kN
Static Load Rating (C0) - 325 kN
Speed Rating with Oil - 4300 rpm
Speed Rating with Grease - 2800 rpm
Weight - 0.906 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
