NA 2085 NADELLA

Brand - NADELLA
Item Number - NA 2085 NADELLA
Category - Full Complement Needle Bearing with Inner Ring

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 85 mm
Inner Diameter (d) - 85 mm
Outer Diameter (D) - 120 mm
Width (B) - 32 mm
Dimension (Fw) - 99.5 mm
Minimum Chamfer Dimension (rs) - 1.35 mm
Dynamic Load Rating (C) - 113 kN
Static Load Rating (C0) - 285 kN
Speed Rating with Oil - 3800 rpm
Speed Rating with Grease - 2500 rpm
Weight - 0.787 kg

Description of Prefix :
NA - Full complement needle bearings with inner ring

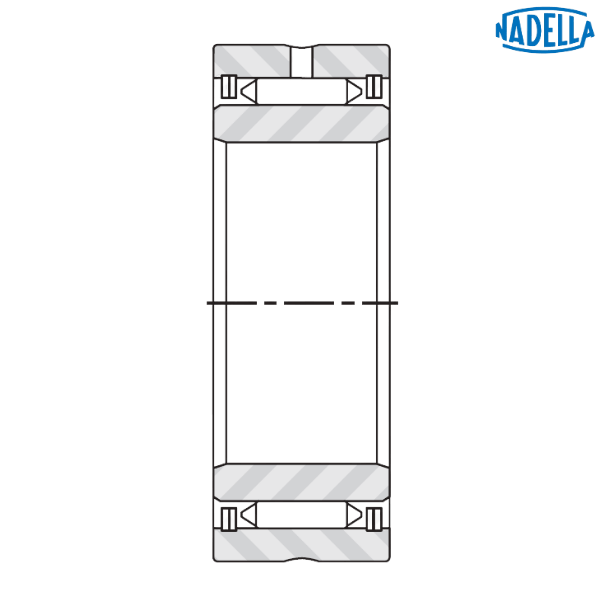

♦ ♦ Images are for representation purposes only
