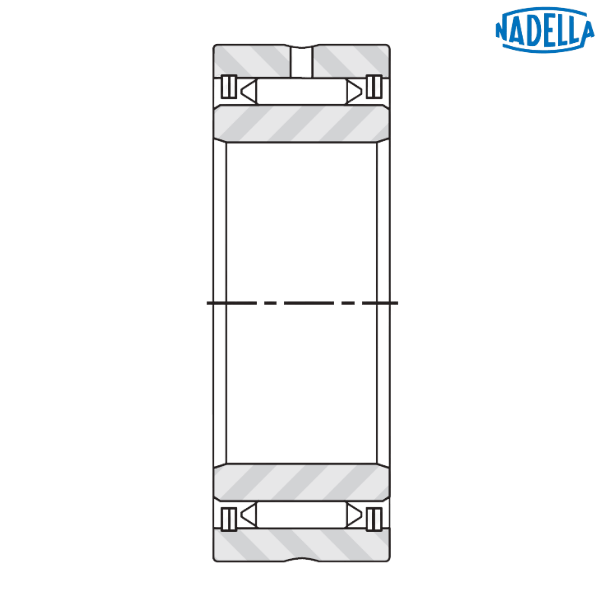

NA 2070 NADELLA

Brand - NADELLA
Item Number - NA 2070 NADELLA
Category - Full Complement Needle Bearing with Inner Ring

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 70 mm
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 100 mm
Width (B) - 28 mm
Dimension (Fw) - 83.1 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 81 kN
Static Load Rating (C0) - 195 kN
Speed Rating with Oil - 4500 rpm
Speed Rating with Grease - 2900 rpm
Weight - 0.47 kg

Description of Prefix :
NA - Full complement needle bearings with inner ring
