Description
Brand - NADELLA
Item Number - NA 2055 NADELLA

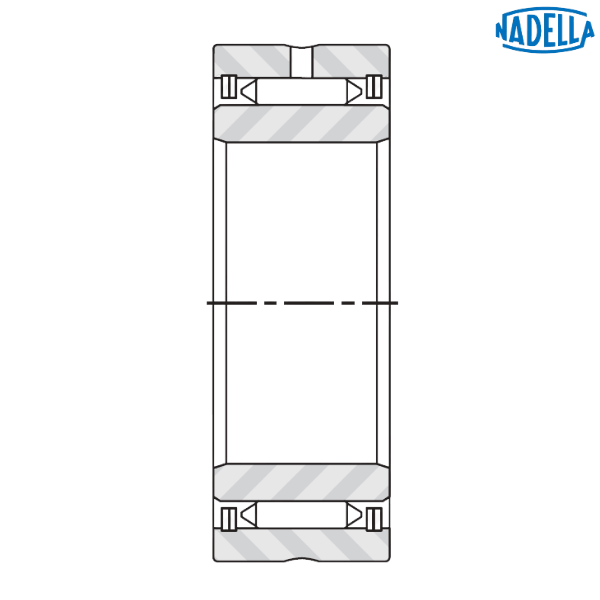

Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 55 mm
Inner Diameter (d) - 55 mm
Outer Diameter (D) - 85 mm
Width (B) - 28 mm
Dimension (Fw) - 68.8 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 69 kN
Static Load Rating (C0) - 157 kN
Speed Rating with Oil - 5500 rpm
Speed Rating with Grease - 3600 rpm
Weight - 0.361 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
Item Number - NA 2055 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 55 mm
Inner Diameter (d) - 55 mm
Outer Diameter (D) - 85 mm
Width (B) - 28 mm
Dimension (Fw) - 68.8 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 69 kN
Static Load Rating (C0) - 157 kN
Speed Rating with Oil - 5500 rpm
Speed Rating with Grease - 3600 rpm
Weight - 0.361 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
