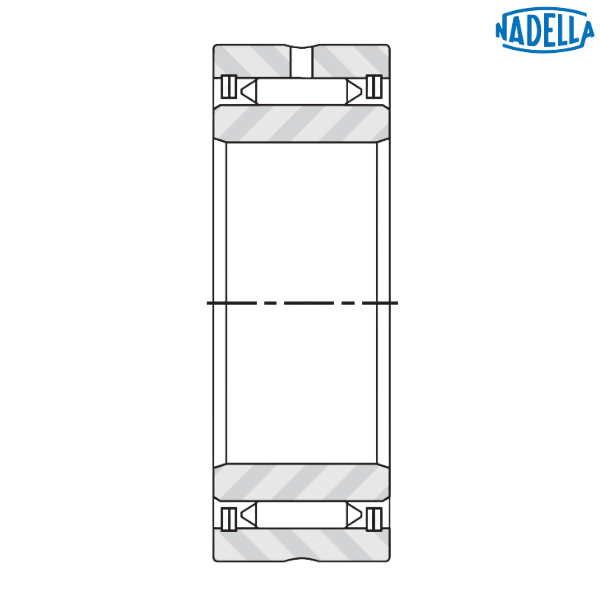

NA 2020 NADELLA

Brand - NADELLA
Item Number - NA 2020 NADELLA
Category - Full Complement Needle Bearing with Inner Ring

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 42 mm
Width (B) - 22 mm
Dimension (Fw) - 28.7 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 28.5 kN
Static Load Rating (C0) - 49 kN
Speed Rating with Oil - 13000 rpm
Speed Rating with Grease - 8600 rpm
Weight - 0.104 kg

Description of Prefix :
NA - Full complement needle bearings with inner ring

♦ ♦ Images are for representation purposes only
