Description
Brand - NADELLA
Item Number - NA 1045 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 45 mm
Inner Diameter (d) - 45 mm
Outer Diameter (D) - 72 mm
Width (B) - 18 mm
Dimension (Fw) - 55.4 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 30.5 kN
Static Load Rating (C0) - 65 kN
Speed Rating with Oil - 6900 rpm
Speed Rating with Grease - 4500 rpm
Weight - 0.193 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring

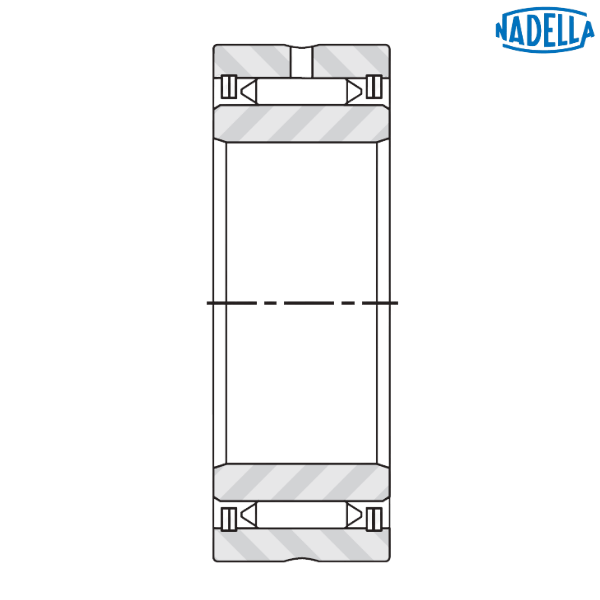

♦ ♦ Images are for representation purposes only
Item Number - NA 1045 NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 45 mm
Inner Diameter (d) - 45 mm
Outer Diameter (D) - 72 mm
Width (B) - 18 mm
Dimension (Fw) - 55.4 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 30.5 kN
Static Load Rating (C0) - 65 kN
Speed Rating with Oil - 6900 rpm
Speed Rating with Grease - 4500 rpm
Weight - 0.193 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
♦ ♦ Images are for representation purposes only
