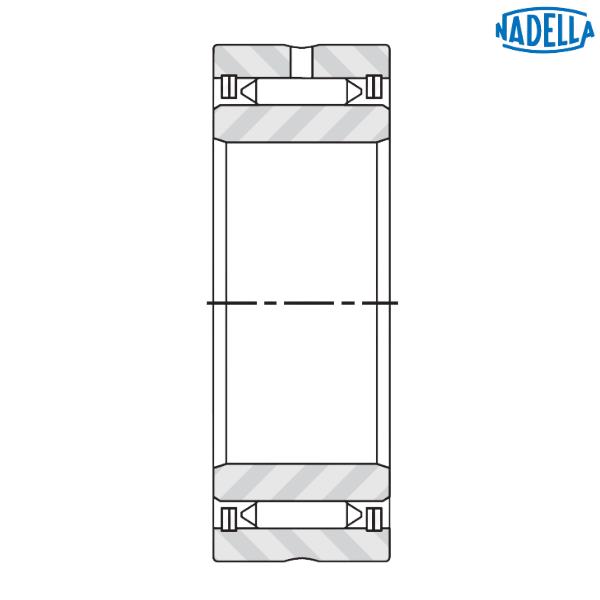

NA 1040 NADELLA

Brand - NADELLA
Item Number - NA 1040 NADELLA
Category - Full Complement Needle Bearing with Inner Ring

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Inner Diameter (d) - 40 mm
Outer Diameter (D) - 65 mm
Width (B) - 18 mm
Dimension (Fw) - 49.7 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 28.5 kN
Static Load Rating (C0) - 58 kN
Speed Rating with Oil - 7600 rpm
Speed Rating with Grease - 4900 rpm
Weight - 0.16 kg

Description of Prefix :
NA - Full complement needle bearings with inner ring

♦ ♦ Images are for representation purposes only
