Description
Brand - NADELLA
Item Number - NA 1015 * NADELLA
Category - Full Complement Needle Bearing with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 32 mm
Width (B) - 15 mm
Dimension (Fw) - 20.8 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 12.4 kN
Static Load Rating (C0) - 19.5 kN
Speed Rating with Oil - 18000 rpm
Speed Rating with Grease - 12000 rpm
Weight - 0.044 kg
Description of Prefix :
NA - Full complement needle bearings with inner ring
Other salient points to be noted :
* Without holes and lubrication groove

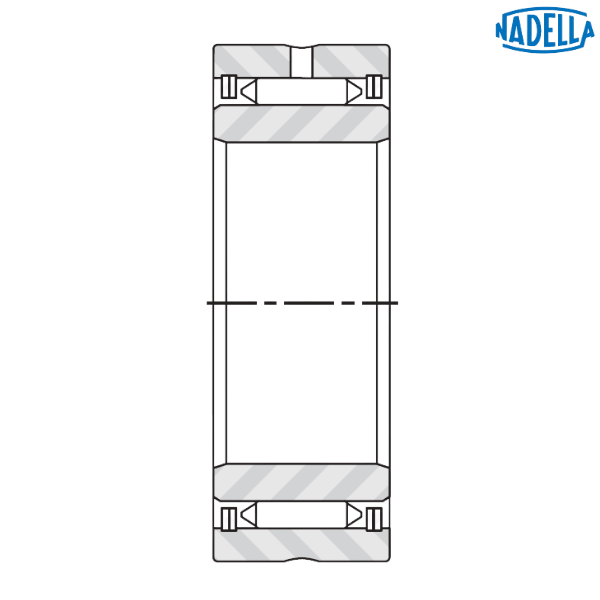

♦ ♦ Images are for representation purposes only
