Description
Brand - FAG

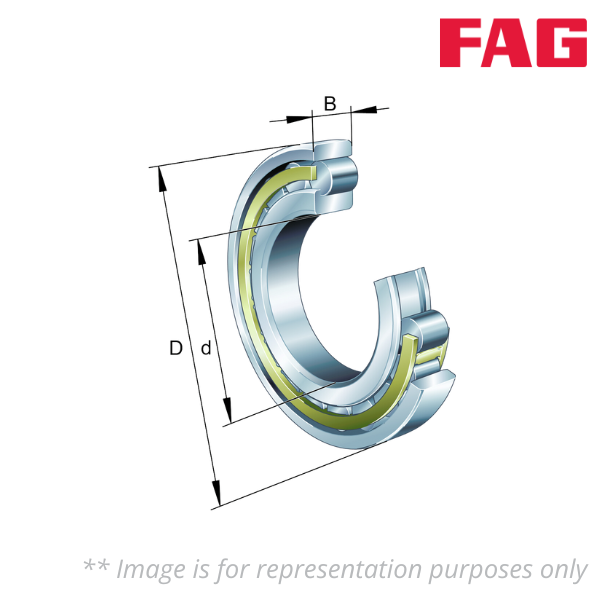

Item Number - N2860-M1 FAG
Weight (kg) - 12.8

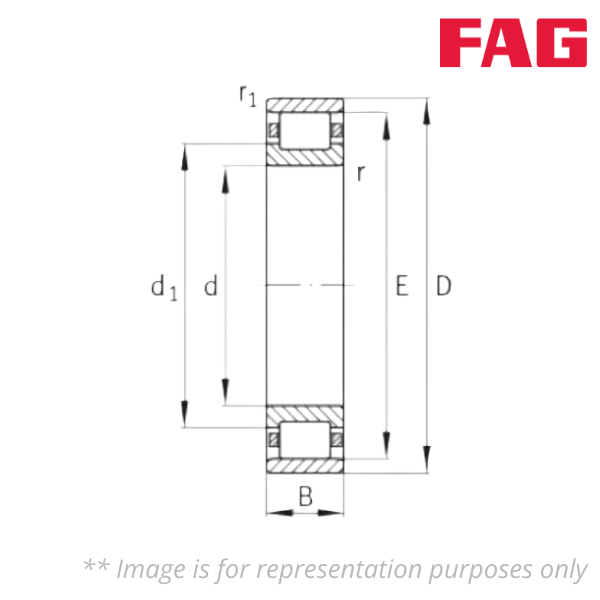

Inner Diameter (d) mm - 300
Outer Diameter (D) mm - 380
Inner Width (B) mm - 48
Minimum Chamfer Dimension (r) mm - 2.1
Minimum Chamfer Dimension (r1) mm - 1.5

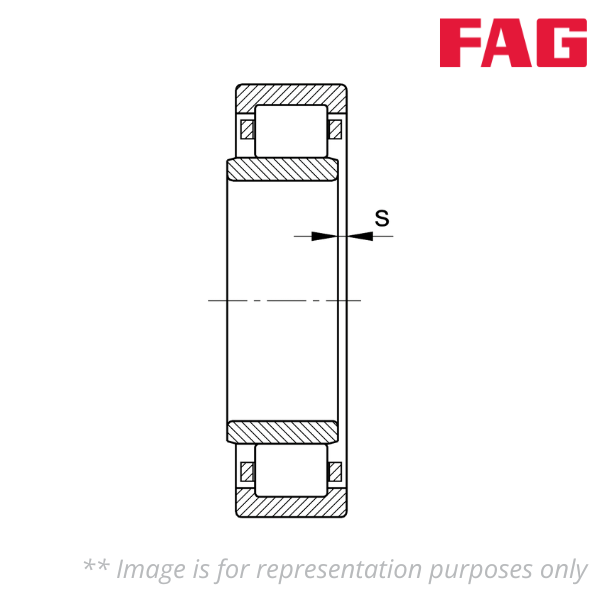

Axial Displacement (s) mm - 5.3
Raceway Diameter Outer Ring (E) mm - 362
Shoulder Diameter Inner Ring (d1) mm - 328.7

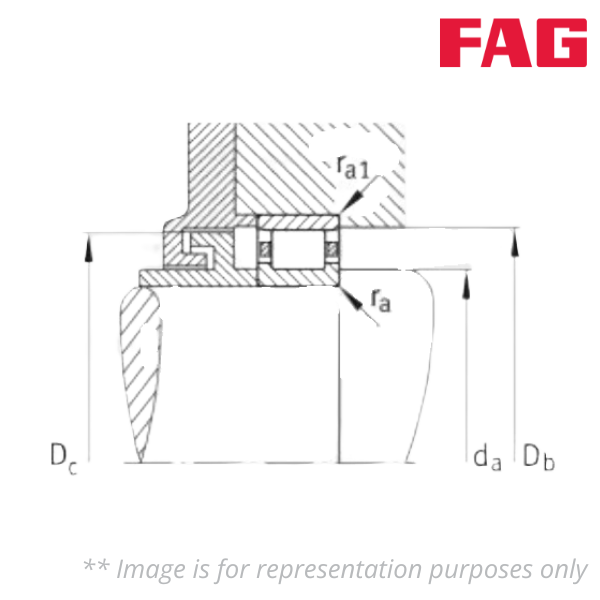

Minimum Diameter of Shaft Shoulder (da) mm - 310
Maximum Diameter of Housing Shoulder (Da) mm - 370
Maximum Fillet Radius of Shaft (ra) mm - 2
Maximum Fillet Radius of Housing (ra1) mm - 1.5
Basic Dynamic Load Rating (Cr) kN - 475
Basic Static Load Rating (C0r) kN - 1000
Fatigue Limit Load (Cur) kN - 101
Limiting Speed (nG) rpm - 2800
Reference Speed (nB) rpm - 1200
