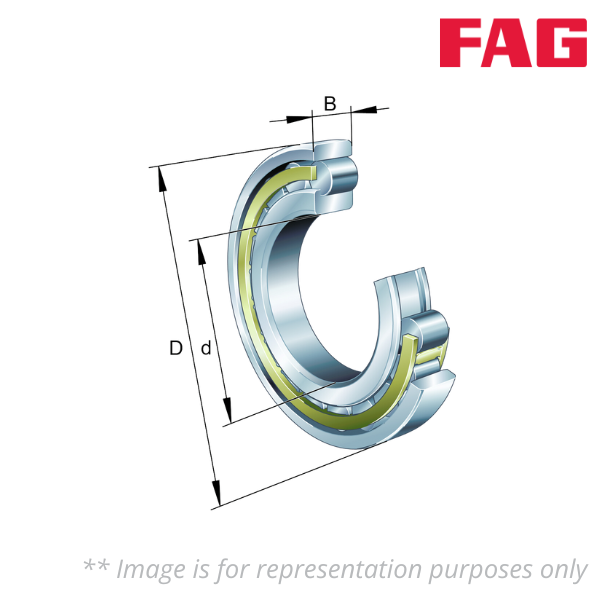

N2336-EX-M1 FAG

Brand - FAG
Item Number - N2336-EX-M1 FAG
Weight (Kg) - 71.3

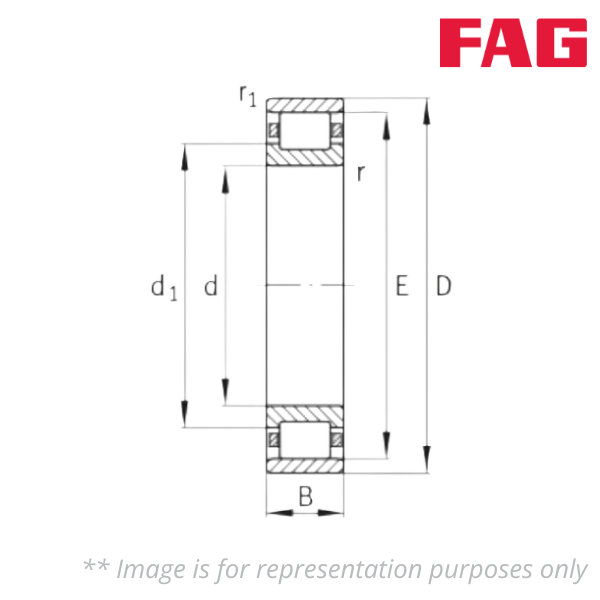

Inner Diameter (d) mm - 180
Outer Diameter (D) mm - 380
Inner Width (B) mm - 126
Minimum Chamfer Dimension (r) mm - 4
Minimum Chamfer Dimension (r1) mm - 4

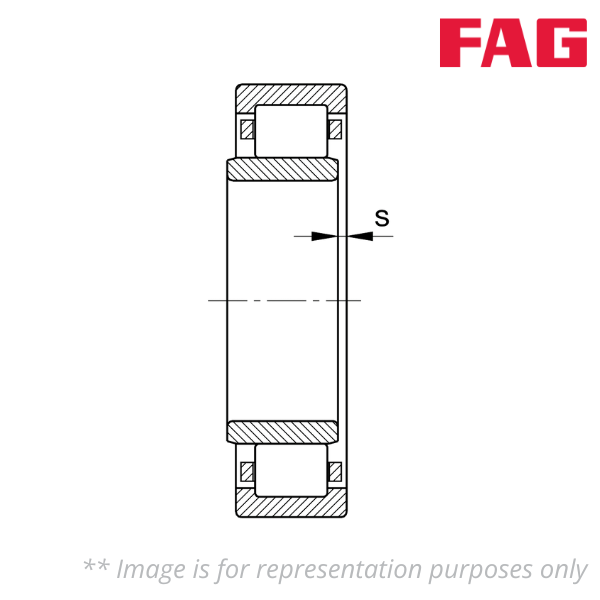

Axial Displacement (s) mm - 10.5
Raceway Diameter Outer Ring (E) mm - 339
Shoulder Diameter Inner Ring (d1) mm - 248

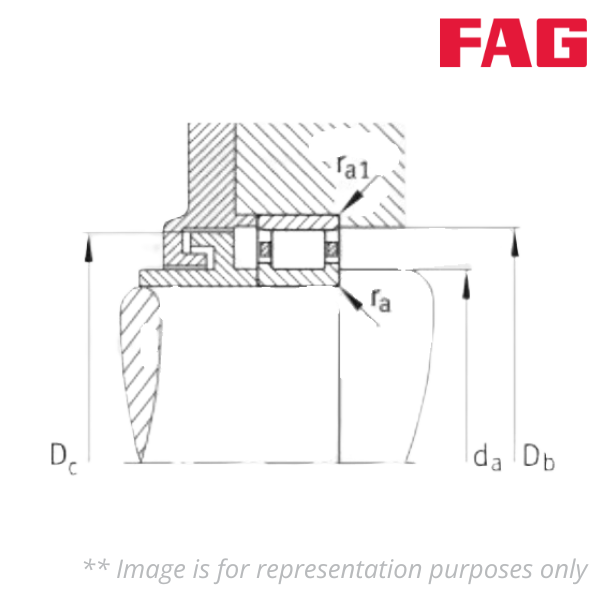

Minimum Diameter of Shaft Shoulder (da) mm - 197
Maximum Diameter of Housing Shoulder (Da) mm - 363
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Housing (ra1) mm - 3
Basic Dynamic Load Rating (Cr) kN - 1660
Basic Static Load Rating (C0r) kN - 2320
Fatigue Limit Load (Cur) kN - 260
Limiting Speed (nG) rpm - 2800
Reference Speed (nB) rpm - 1100
