Description
Brand - FAG
Item Number - N1030-K-M1-SP FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 4.81
Inner Diameter (d) mm - 150
Outer Diameter (D) mm - 225
Width (B) mm - 35
Minimum Chamfer Dimension (rmin) mm - 1.5
Minimum Chamfer Dimension (r1min) mm - 205.5

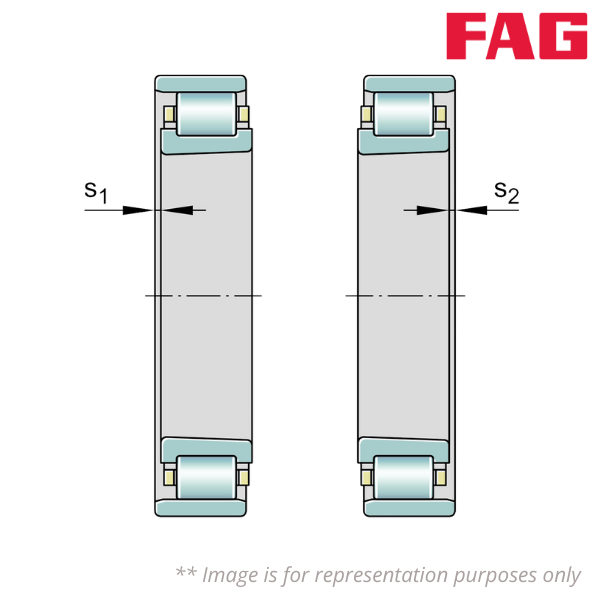

Axial Displacement (s1) mm - 4.4
Axial Displacement (s2) mm - 4.4

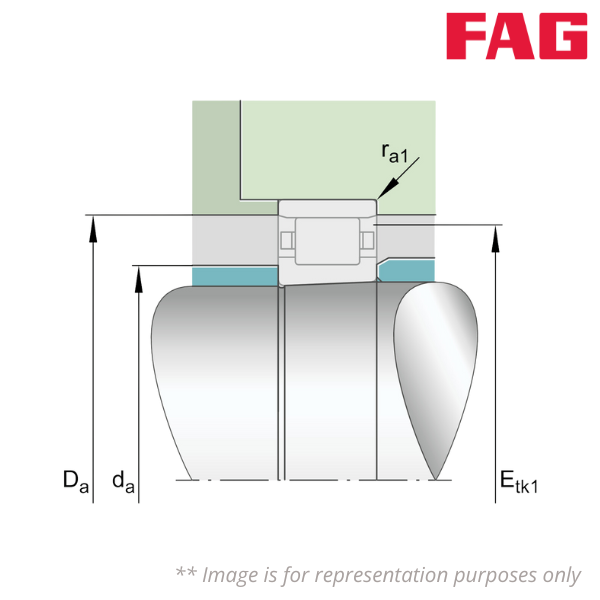

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 169.5
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 207.8
Basic Dynamic Load Rating, Radial (Cr) N - 210000
Basic Static Load Rating, Radial (C0r) N - 310000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 4250
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 5000
