Description
Brand - FAG
Item Number - N1026-K-M1-SP FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 3.72
Inner Diameter (d) mm - 130
Outer Diameter (D) mm - 200
Width (B) mm - 33
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 182

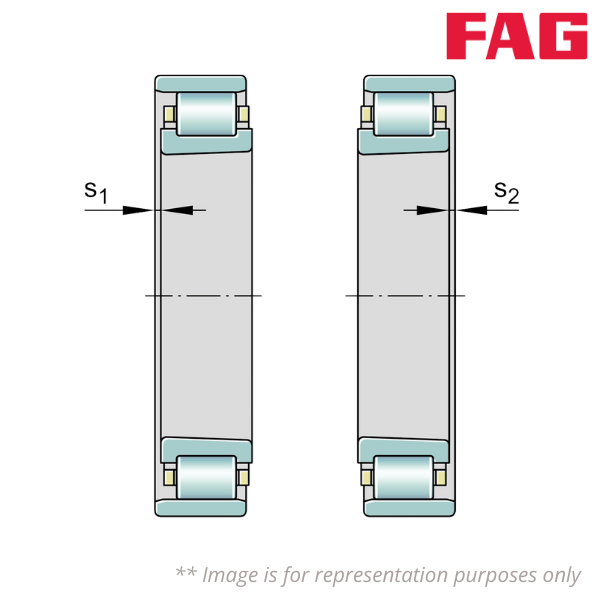

Axial Displacement (s1) mm - 4.2
Axial Displacement (s2) mm - 4.2

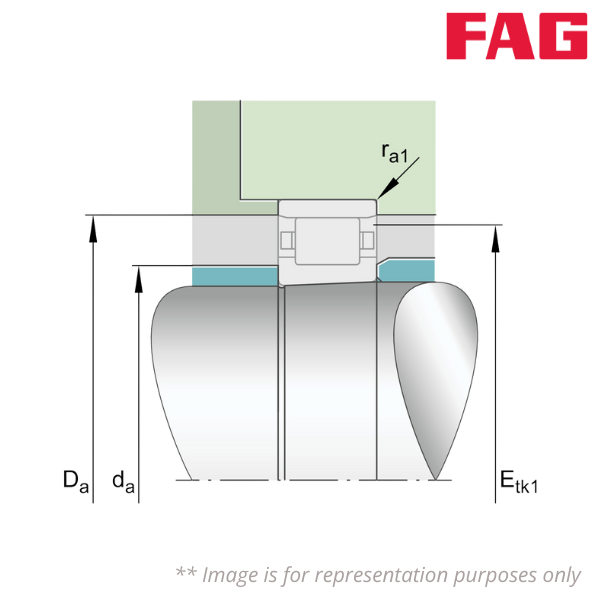

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 148
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 184.1
Basic Dynamic Load Rating, Radial (Cr) N - 179000
Basic Static Load Rating, Radial (C0r) N - 250000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 4800
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 5600
