Description
Brand - FAG
Item Number - N1020-D-K-PVPA1-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 1.29
Inner Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (B) mm - 24
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 137

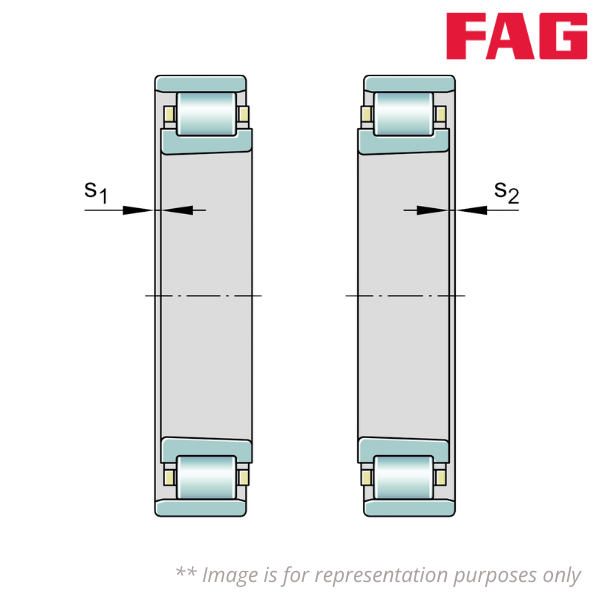

Axial Displacement (s1) mm - 2.2
Axial Displacement (s2) mm - 4.4

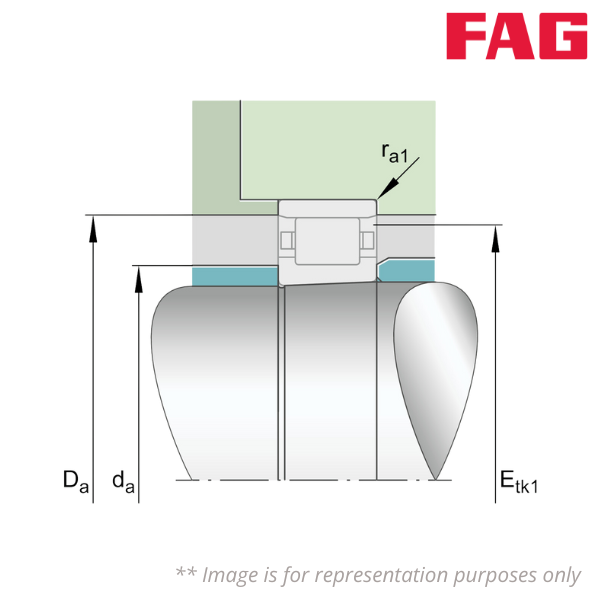

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 115
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 138.5
Basic Dynamic Load Rating, Radial (Cr) N - 99000
Basic Static Load Rating, Radial (C0r) N - 118000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 11900
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 14100
