Description
Brand - FAG
Item Number - N1019-D-K-TVP-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 1.29
Inner Diameter (d) mm - 95
Outer Diameter (D) mm - 145
Width (B) mm - 24
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 132

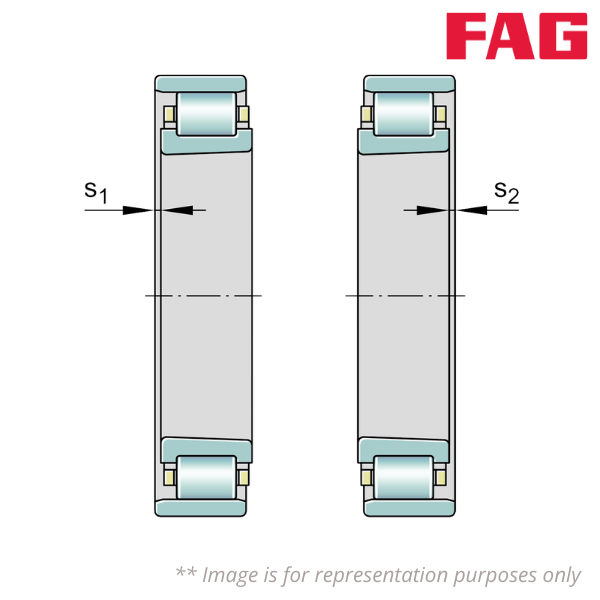

Axial Displacement (s1) mm - 4.4
Axial Displacement (s2) mm - 4.4
Diameter Shaft Shoulder Clearance - h12

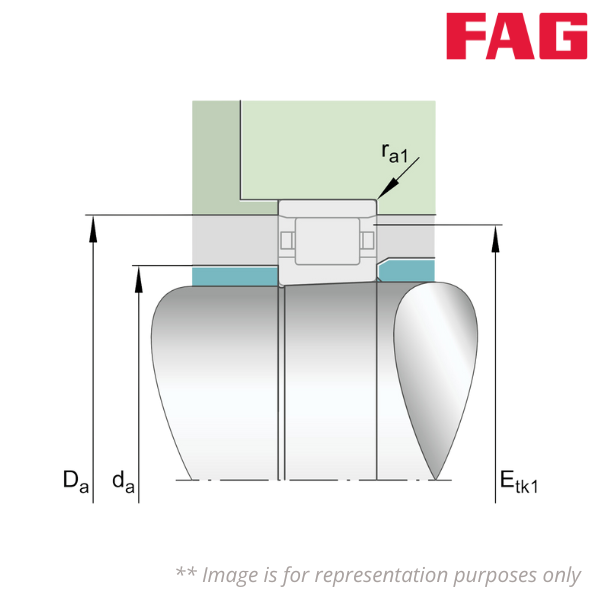

Diameter Shaft Shoulder (da) mm - 110
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 133.5
Basic Dynamic Load Rating, Radial (Cr) N - 99000
Basic Static Load Rating, Radial (C0r) N - 117000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 7700
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 9100
