Description
Brand - FAG
Item Number - N1014-D-K-PVPA1-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 0.61
Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 110
Width (B) mm - 20
Minimum Chamfer Dimension (rmin) mm - 1
Minimum Chamfer Dimension (r1min) mm - 100

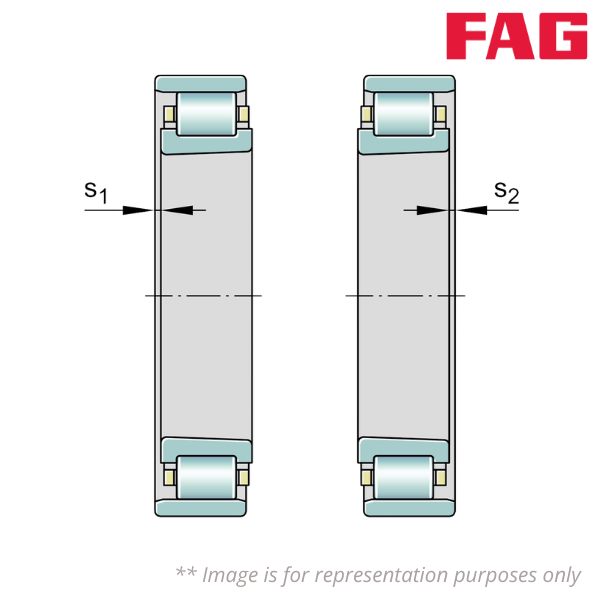

Axial Displacement (s1) mm - 1.8
Axial Displacement (s2) mm - 3.8

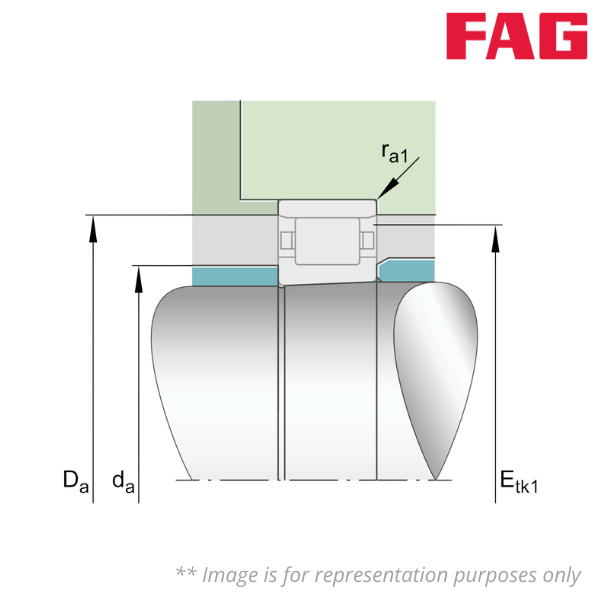

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 82
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 101.3
Basic Dynamic Load Rating, Radial (Cr) N - 58000
Basic Static Load Rating, Radial (C0r) N - 61000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 16400
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 19200
