Description
Brand - FAG
Item Number - N1013-D-K-PVPA1-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 0.45
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 100
Width (B) mm - 18
Minimum Chamfer Dimension (rmin) mm - 1
Minimum Chamfer Dimension (r1min) mm - 91

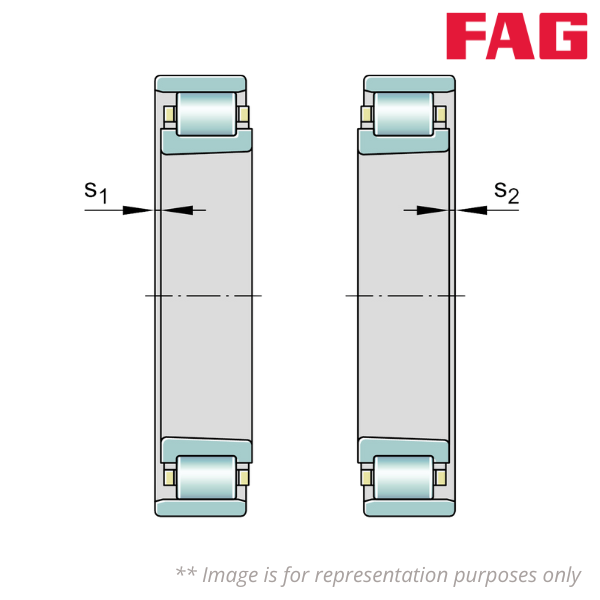

Axial Displacement (s1) mm - 1.6
Axial Displacement (s2) mm - 3.4

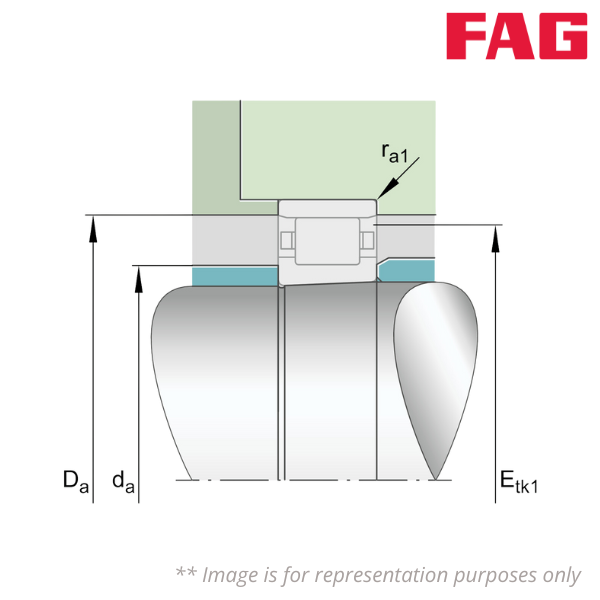

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 75
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 92.2
Basic Dynamic Load Rating, Radial (Cr) N - 47000
Basic Static Load Rating, Radial (C0r) N - 49000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 18200
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 21400
