Description
Brand - FAG
Item Number - N1007-D-K-TVP-SP-XL FAG
Category - Super Precision Cylindrical Roller Bearing
Weight (m) kg - 0.16
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 62
Width (B) mm - 14
Minimum Chamfer Dimension (rmin) mm - 0.6
Minimum Chamfer Dimension (r1min) mm - 55

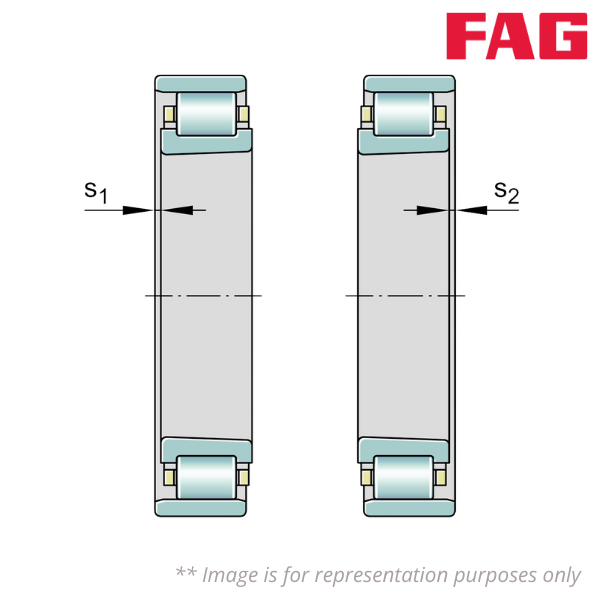

Axial Displacement (s1) mm - 2.8
Axial Displacement (s2) mm - 2.8

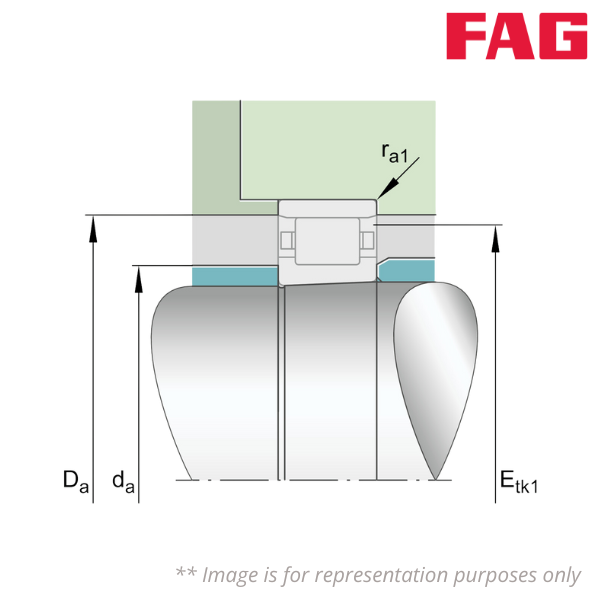

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 43
Shoulder Diameter Outer Ring Clearance - D12
Shoulder Diameter Outer Ring (Da) mm - 56
Basic Dynamic Load Rating, Radial (Cr) N - 23600
Basic Static Load Rating, Radial (C0r) N - 20900
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 18700
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 22000
