N 1022 KTN9/SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1022 KTN9/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 110
Outside Diameter (D) mm - 170
Width (B) mm - 28
Basic Dynamic Load Rating (C) kN - 128
Basic Static Load Rating (C0) kN - 180
Fatigue Load Limit (Pu) kN - 20.8
Attainable Speeds Grease Lubrication (r/min) - 5600
Attainable Speeds Oil-Air Lubrication (r/min) - 6300
Weight (kg) - 2.05
Shoulder Diameter Inner Ring (d1) mm - 132.6
Raceway Diameter Outer Ring (E) mm - 155
Minimum Chamfer Dimension (r1, r2) mm - 2
Minimum Chamfer Dimension (r3, r4) mm - 1.1
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3

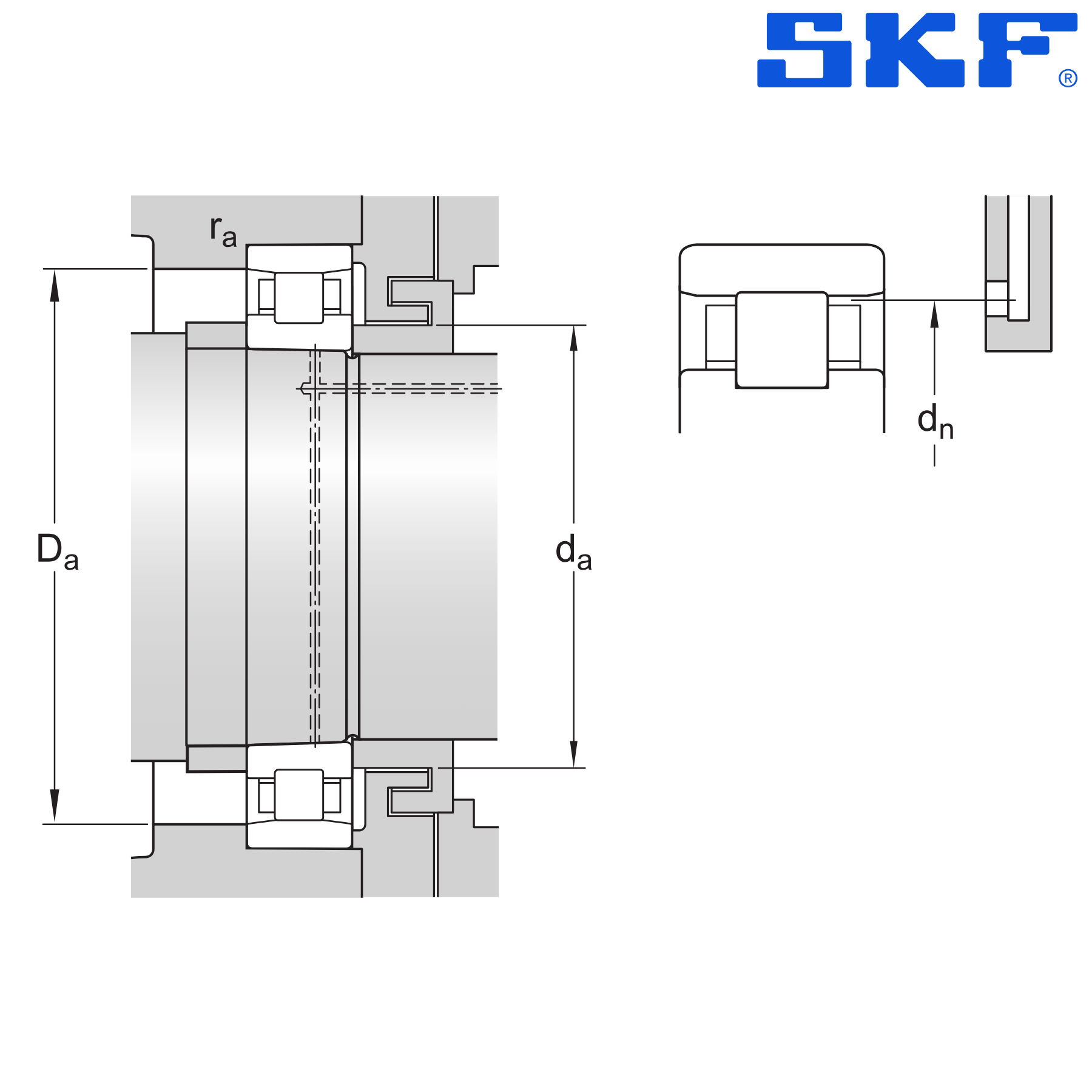

Minimum Abutment Diameter Shaft (da) mm - 119
Minimum Abutment Diameter Housing (Da) mm - 157
Maximum Abutment Diameter Housing (Da) mm - 161
Maximum Radius of Fillet (ra) mm - 2
Position of Oil Nozzle (dn) mm - 153
Reference Grease Quantity (Gref) mm - 21

** Image is for representation purposes only
