N 1019 KTNHA/HC5SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1019 KTNHA/HC5SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 95
Outside Diameter (D) mm - 145
Width (B) mm - 24
Basic Dynamic Load Rating (C) kN - 80.9
Basic Static Load Rating (C0) kN - 112
Fatigue Load Limit (Pu) kN - 13.4
Attainable Speeds Grease Lubrication (r/min) - 11000
Attainable Speeds Oil-Air Lubrication (r/min) - 15000
Weight (kg) - 1.1
Shoulder Diameter Inner Ring (d1) mm - 114.4
Raceway Diameter Outer Ring (E) mm - 132
Minimum Chamfer Dimension (r1, r2) mm - 1.5
Minimum Chamfer Dimension (r3, r4) mm - 1
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s1) mm - 1

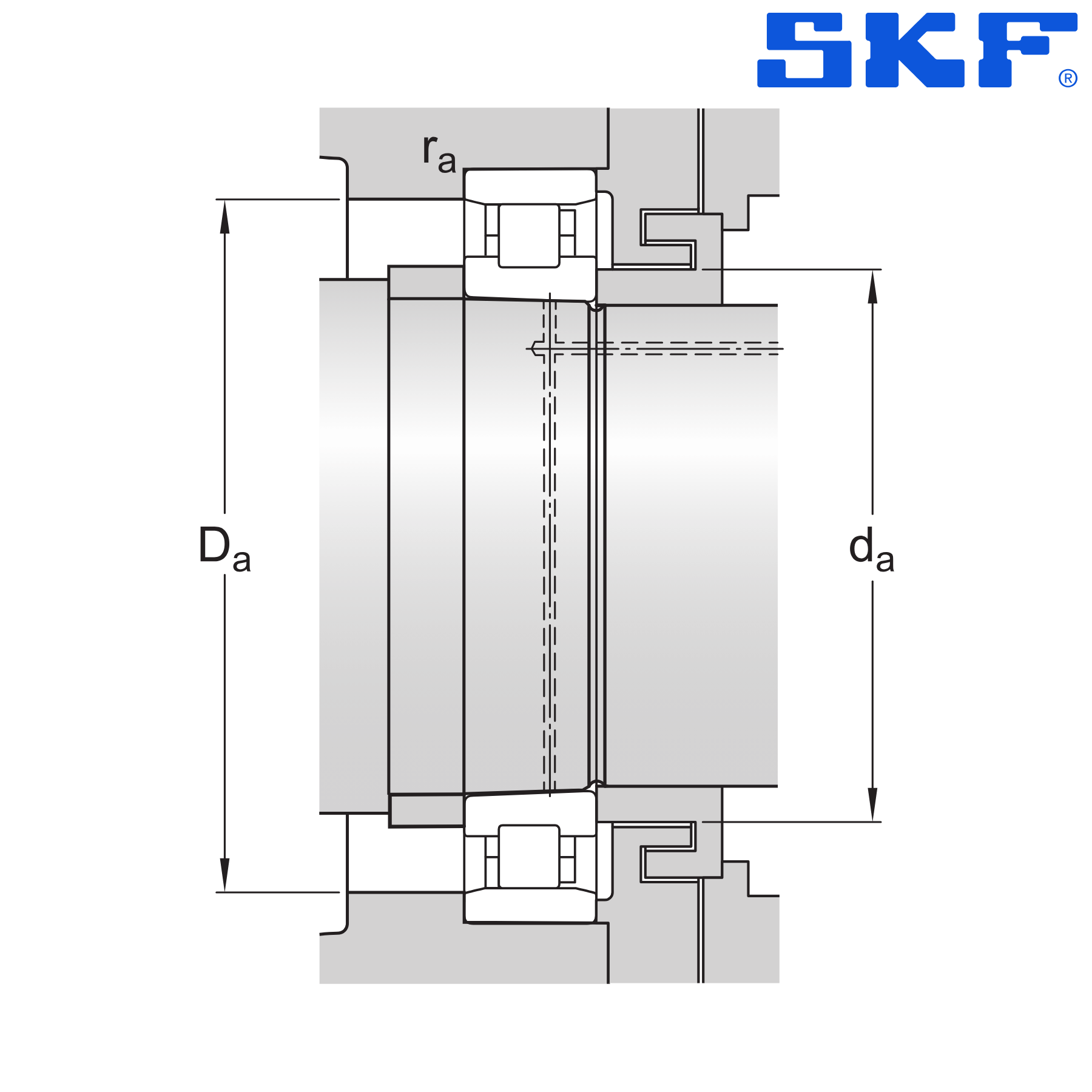

Minimum Abutment Diameter Shaft (da) mm - 103
Minimum Abutment Diameter Housing (Da) mm - 134
Maximum Abutment Diameter Housing (Da) mm - 137
Maximum Radius of Fillet (ra) mm - 1.5
Reference Grease Quantity (Gref) mm - 14

** Image is for representation purposes only
