Description
Brand - SKF
Item Number - N 1018 KTNHA/HC5SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 90
Outside Diameter (D) mm - 140
Width (B) mm - 24
Basic Dynamic Load Rating (C) kN - 76.5
Basic Static Load Rating (C0) kN - 104
Fatigue Load Limit (Pu) kN - 12.5
Attainable Speeds Grease Lubrication (r/min) - 12000
Attainable Speeds Oil-Air Lubrication (r/min) - 16000
Weight (kg) - 1.05
Shoulder Diameter Inner Ring (d1) mm - 109.4
Raceway Diameter Outer Ring (E) mm - 127
Minimum Chamfer Dimension (r1, r2) mm - 1.5
Minimum Chamfer Dimension (r3, r4) mm - 1
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s1) mm - 1

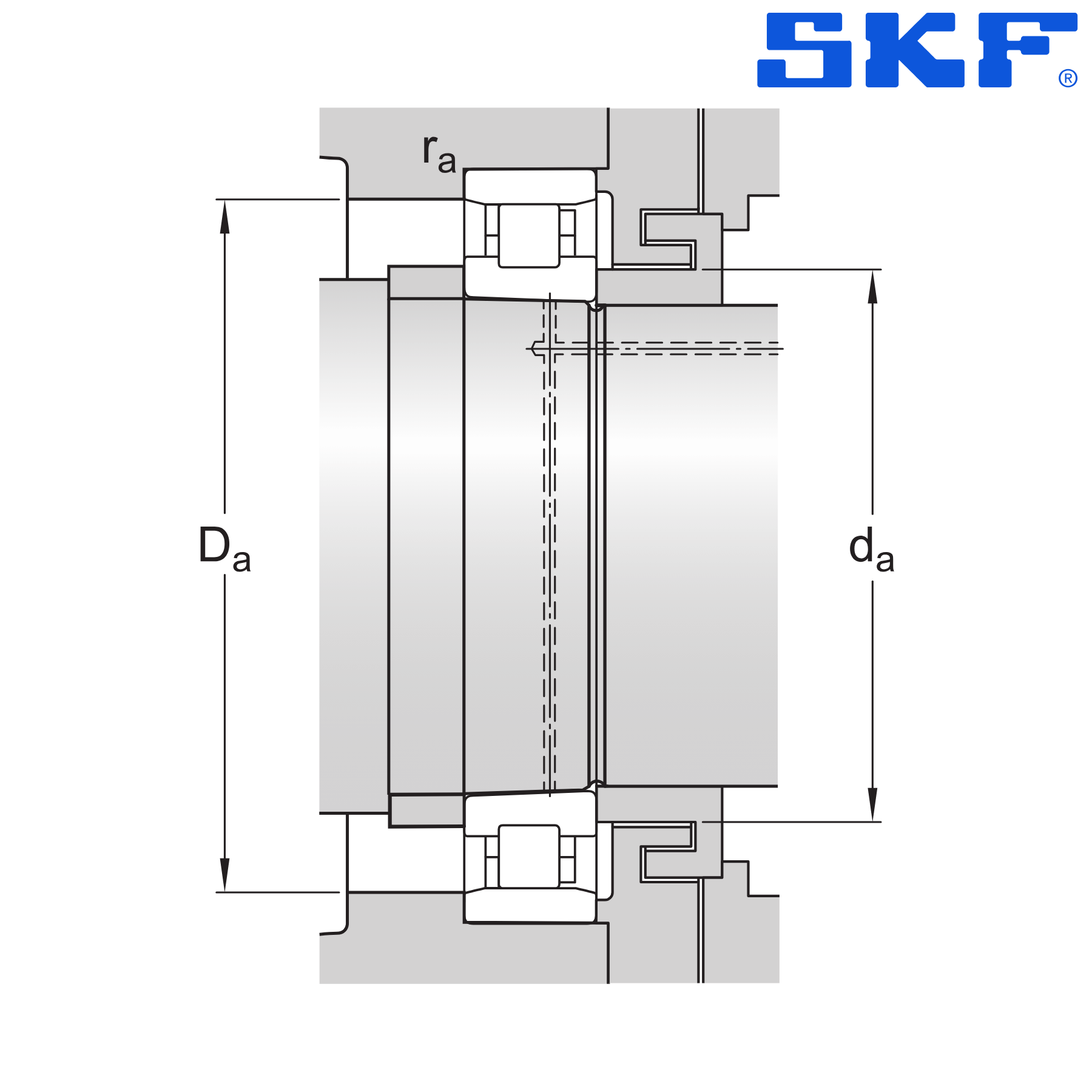

Minimum Abutment Diameter Shaft (da) mm - 98
Minimum Abutment Diameter Housing (Da) mm - 129
Maximum Abutment Diameter Housing (Da) mm - 132
Maximum Radius of Fillet (ra) mm - 1.5
Reference Grease Quantity (Gref) mm - 14
** Image is for representation purposes only
