Description
Brand - SKF
Item Number - N 1017 KTN9/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 85
Outside Diameter (D) mm - 130
Width (B) mm - 22
Basic Dynamic Load Rating (C) kN - 73.7
Basic Static Load Rating (C0) kN - 102
Fatigue Load Limit (Pu) kN - 11.6
Attainable Speeds Grease Lubrication (r/min) - 8000
Attainable Speeds Oil-Air Lubrication (r/min) - 8500
Weight (kg) - 0.9
Shoulder Diameter Inner Ring (d1) mm - 102
Raceway Diameter Outer Ring (E) mm - 118
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3

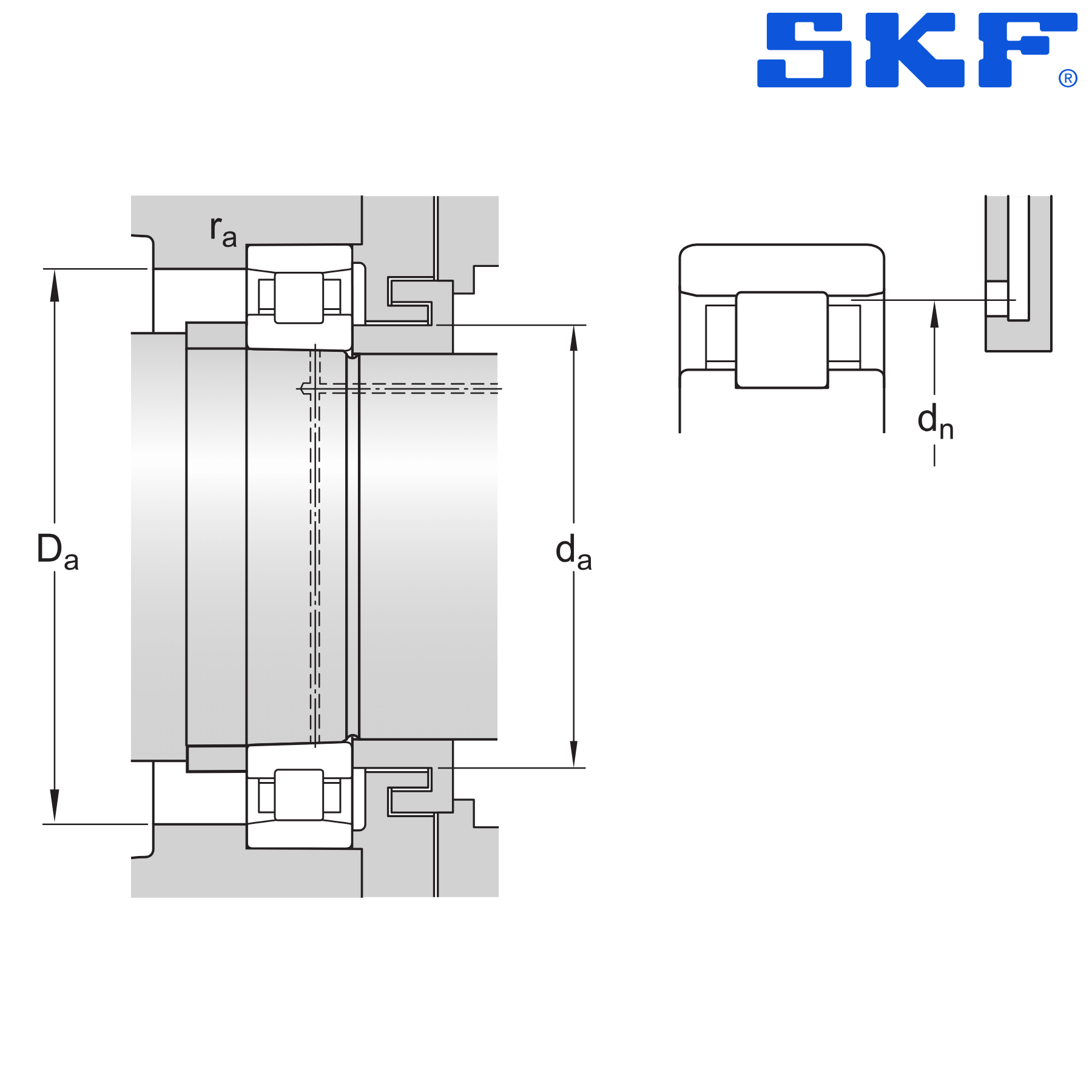

Minimum Abutment Diameter Shaft (da) mm - 91.5
Minimum Abutment Diameter Housing (Da) mm - 119
Maximum Abutment Diameter Housing (Da) mm - 123.5
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 116.5
Reference Grease Quantity (Gref) mm - 9.2
** Image is for representation purposes only
