N 1016 KTN/SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1016 KTN/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 80
Outside Diameter (D) mm - 125
Width (B) mm - 22
Basic Dynamic Load Rating (C) kN - 69.3
Basic Static Load Rating (C0) kN - 93
Fatigue Load Limit (Pu) kN - 11
Attainable Speeds Grease Lubrication (r/min) - 8500
Attainable Speeds Oil-Air Lubrication (r/min) - 9000
Weight (kg) - 0.89
Shoulder Diameter Inner Ring (d1) mm - 97
Raceway Diameter Outer Ring (E) mm - 113
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3

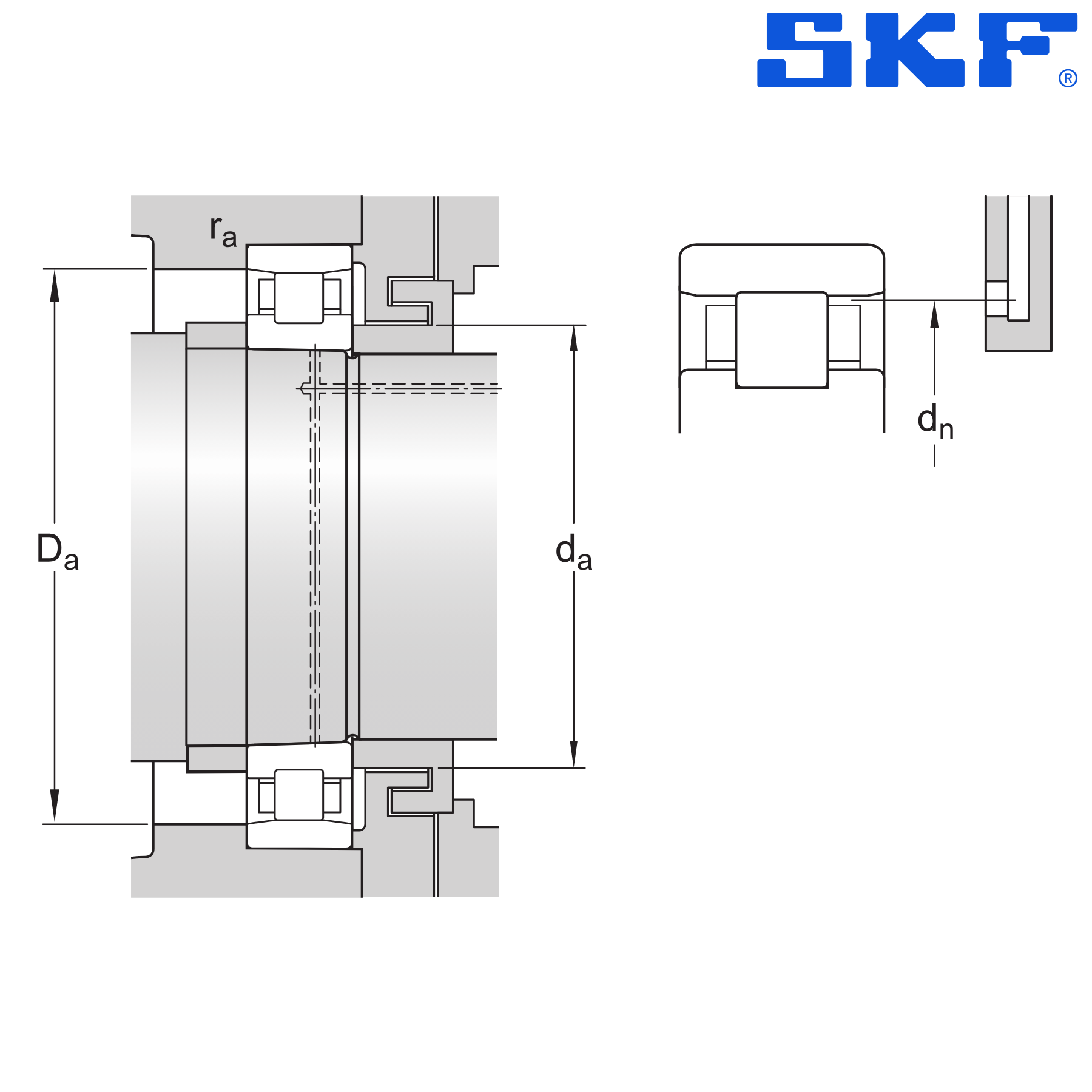

Minimum Abutment Diameter Shaft (da) mm - 86.5
Minimum Abutment Diameter Housing (Da) mm - 114
Maximum Abutment Diameter Housing (Da) mm - 118.5
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 111.4
Reference Grease Quantity (Gref) mm - 9

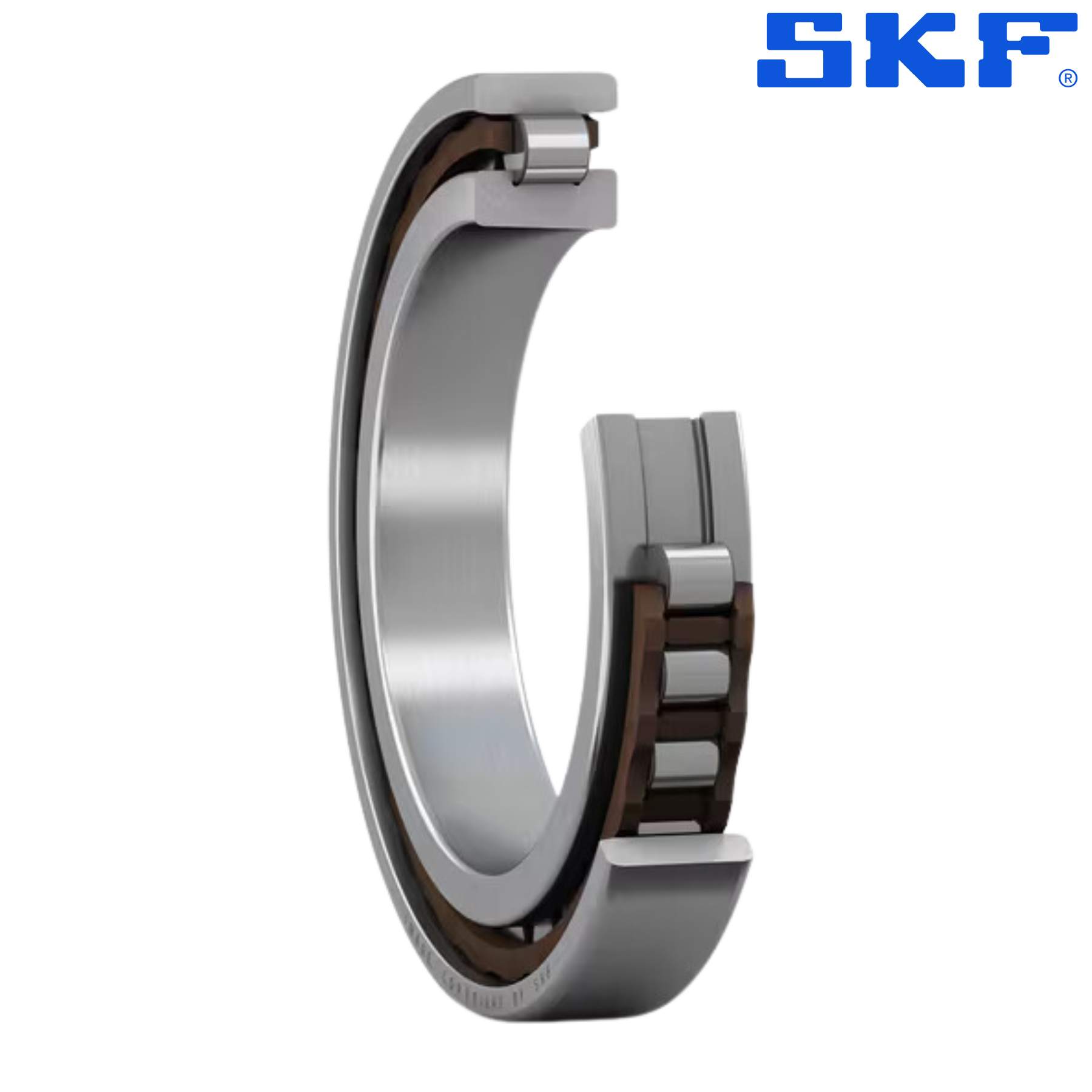

** Image is for representation purposes only
