N 1015 KTN/HC5SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1015 KTN/HC5SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 75
Outside Diameter (D) mm - 115
Width (B) mm - 20
Basic Dynamic Load Rating (C) kN - 56.1
Basic Static Load Rating (C0) kN - 75
Fatigue Load Limit (Pu) kN - 8.8
Attainable Speeds Grease Lubrication (r/min) - 9500
Attainable Speeds Oil-Air Lubrication (r/min) - 11000
Weight (kg) - 0.57
Shoulder Diameter Inner Ring (d1) mm - 90.6
Raceway Diameter Outer Ring (E) mm - 105
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3

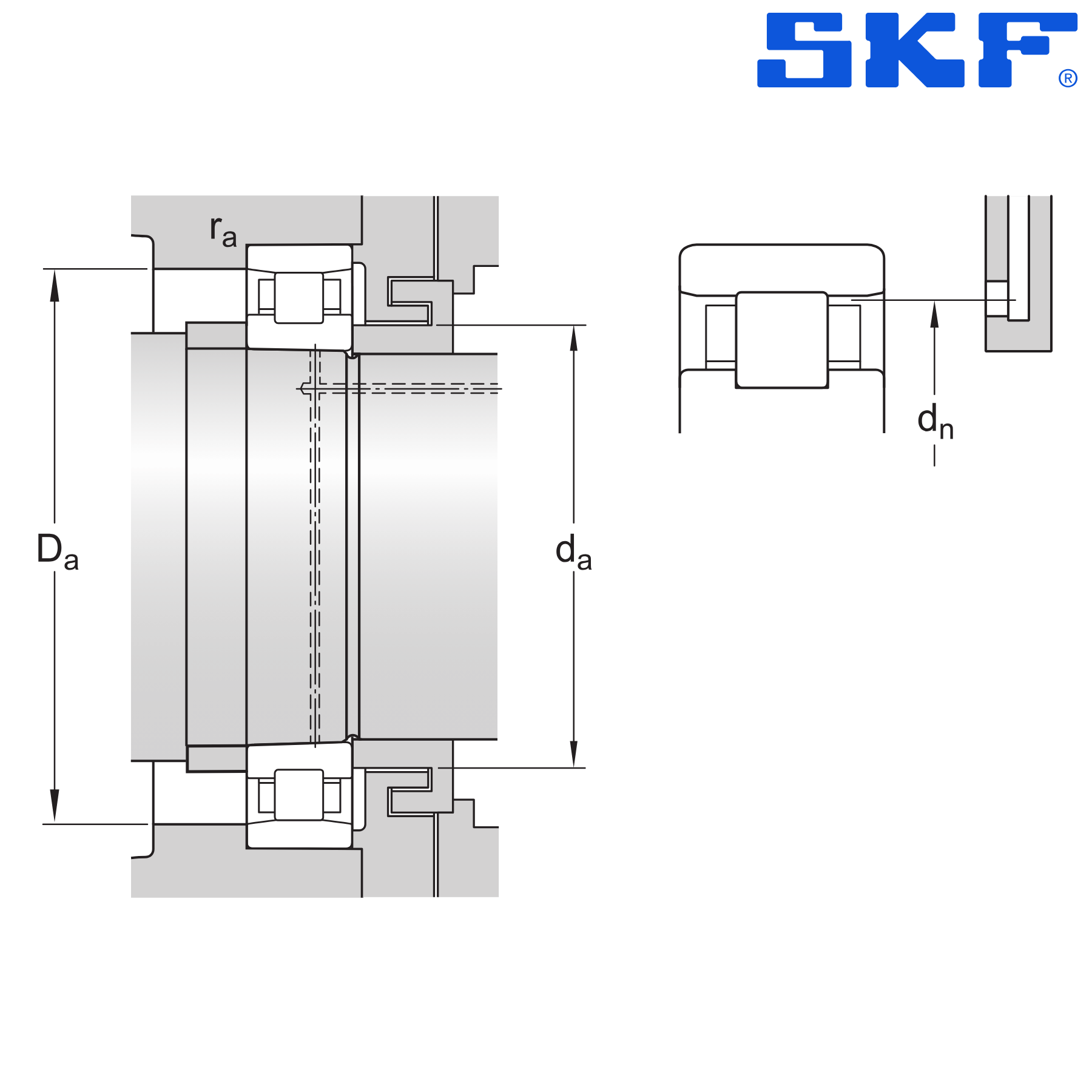

Minimum Abutment Diameter Shaft (da) mm - 81.5
Minimum Abutment Diameter Housing (Da) mm - 106
Maximum Abutment Diameter Housing (Da) mm - 108.5
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 103.5
Reference Grease Quantity (Gref) mm - 7.1

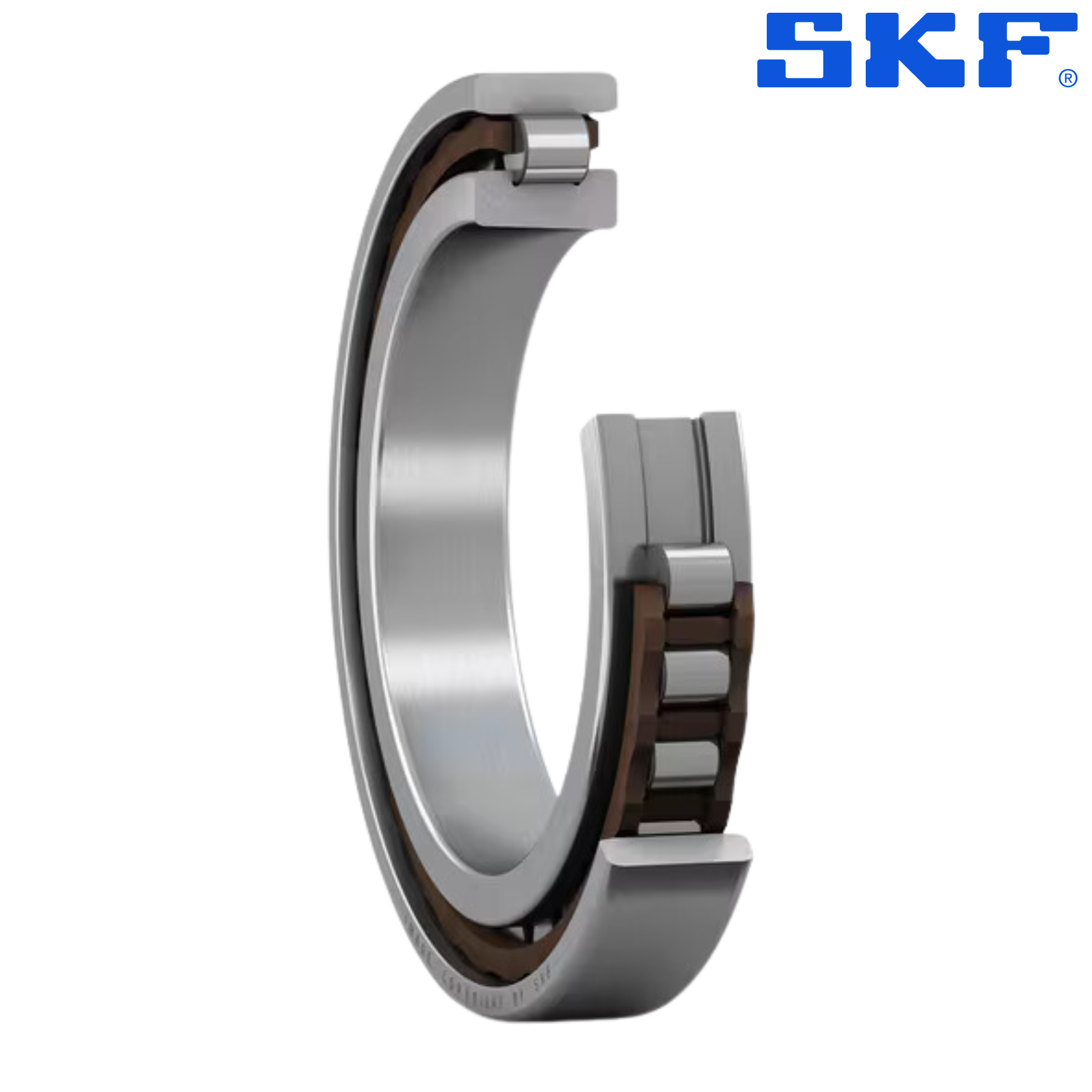

** Image is for representation purposes only
