Description
Brand - SKF
Item Number - N 1014 KPHA/HC5SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 70
Outside Diameter (D) mm - 110
Width (B) mm - 20
Basic Dynamic Load Rating (C) kN - 53.9
Basic Static Load Rating (C0) kN - 69.5
Fatigue Load Limit (Pu) kN - 8
Attainable Speeds Grease Lubrication (r/min) - 20000
Attainable Speeds Oil-Air Lubrication (r/min) - 24000
Weight (kg) - 0.5
Shoulder Diameter Inner Ring (d1) mm - 85.6
Raceway Diameter Outer Ring (E) mm - 100
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 3
Minimum Abutment Diameter Shaft (da) mm - 76.5
Minimum Abutment Diameter Housing (Da) mm - 101
Maximum Abutment Diameter Housing (Da) mm - 103.5
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 87.7
Reference Grease Quantity (Gref) mm - 9.2

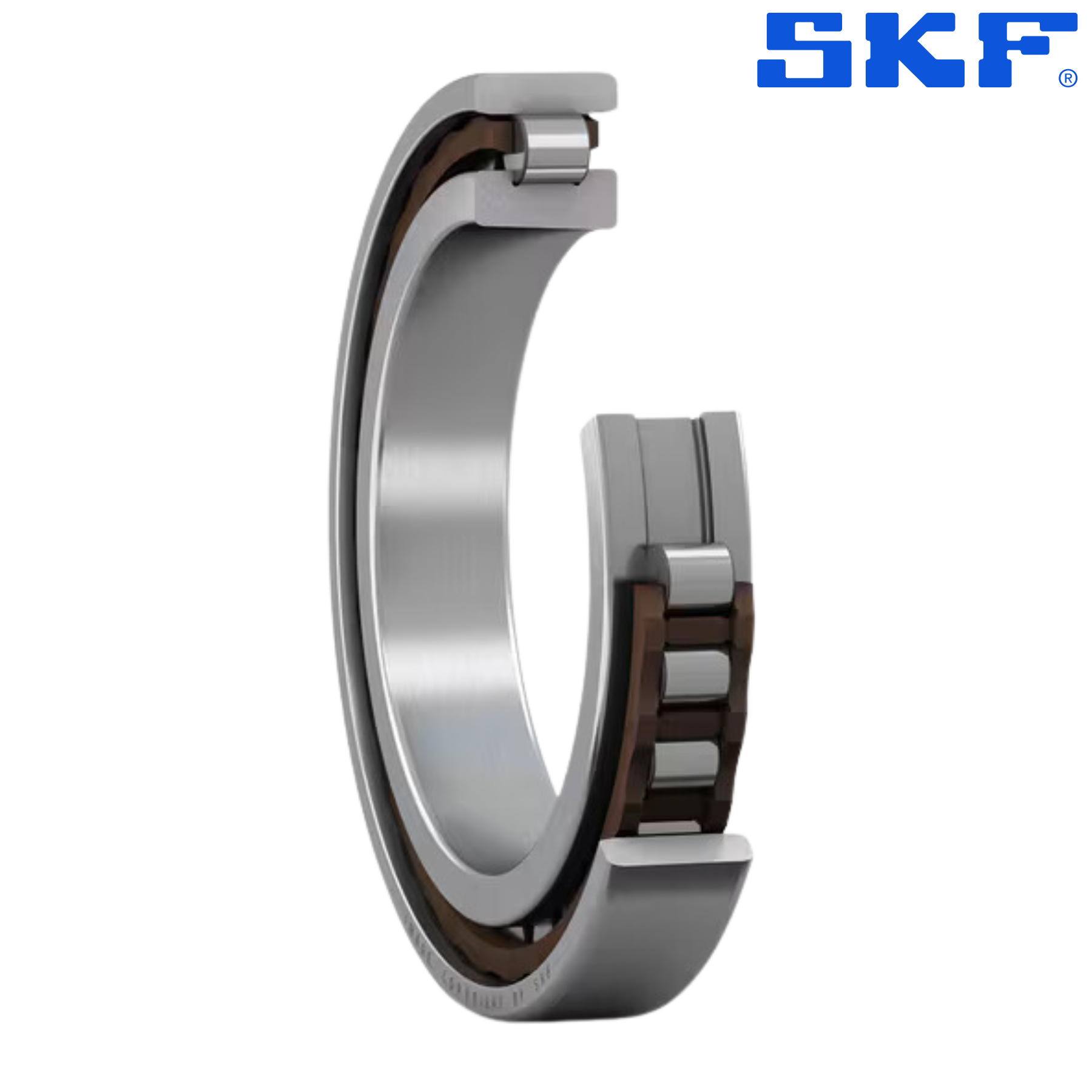

** Image is for representation purposes only
