Description
Brand - SKF
Item Number - N 1012 KTN/SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 60
Outside Diameter (D) mm - 95
Width (B) mm - 18
Basic Dynamic Load Rating (C) kN - 42.9
Basic Static Load Rating (C0) kN - 53
Fatigue Load Limit (Pu) kN - 6.3
Attainable Speeds Grease Lubrication (r/min) - 11000
Attainable Speeds Oil-Air Lubrication (r/min) - 12000
Weight (kg) - 0.41
Shoulder Diameter Inner Ring (d1) mm - 73.3
Raceway Diameter Outer Ring (E) mm - 86.1
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 2.5
Minimum Abutment Diameter Shaft (da) mm - 66.5
Minimum Abutment Diameter Housing (Da) mm - 87
Maximum Abutment Diameter Housing (Da) mm - 88.5
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 85
Reference Grease Quantity (Gref) mm - 4.7

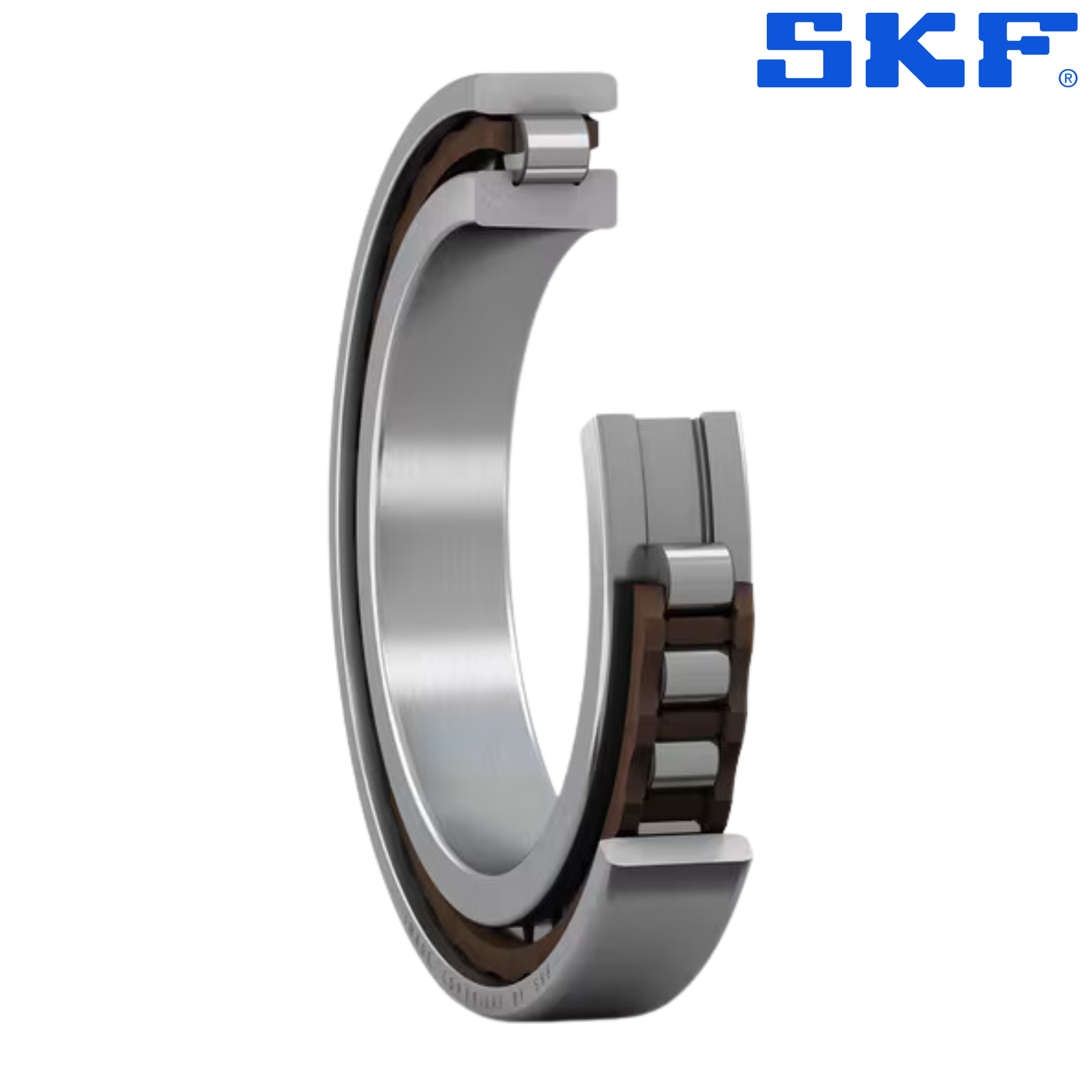

** Image is for representation purposes only
