N 1009 KTN/HC5SP SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - N 1009 KTN/HC5SP SKF
Category - Cylindrical Roller Bearings Single Row
Bore Diameter (d) mm - 45
Outside Diameter (D) mm - 75
Width (B) mm - 16
Basic Dynamic Load Rating (C) kN - 29.2
Basic Static Load Rating (C0) kN - 32.5
Fatigue Load Limit (Pu) kN - 3.8
Attainable Speeds Grease Lubrication (r/min) - 16000
Attainable Speeds Oil-Air Lubrication (r/min) - 18000
Weight (kg) - 0.22
Shoulder Diameter Inner Ring (d1) mm - 56.3
Raceway Diameter Outer Ring (E) mm - 67.5
Minimum Chamfer Dimension (r1, r2) mm - 1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Permissible Axial Displacement From The Normal Position Of One Bearing Ring Relative To The Other (s) mm - 2
Minimum Abutment Diameter Shaft (da) mm - 50
Minimum Abutment Diameter Housing (Da) mm - 69
Maximum Abutment Diameter Housing (Da) mm - 70
Maximum Radius of Fillet (ra) mm - 1
Position of Oil Nozzle (dn) mm - 66.4
Reference Grease Quantity (Gref) mm - 2.9

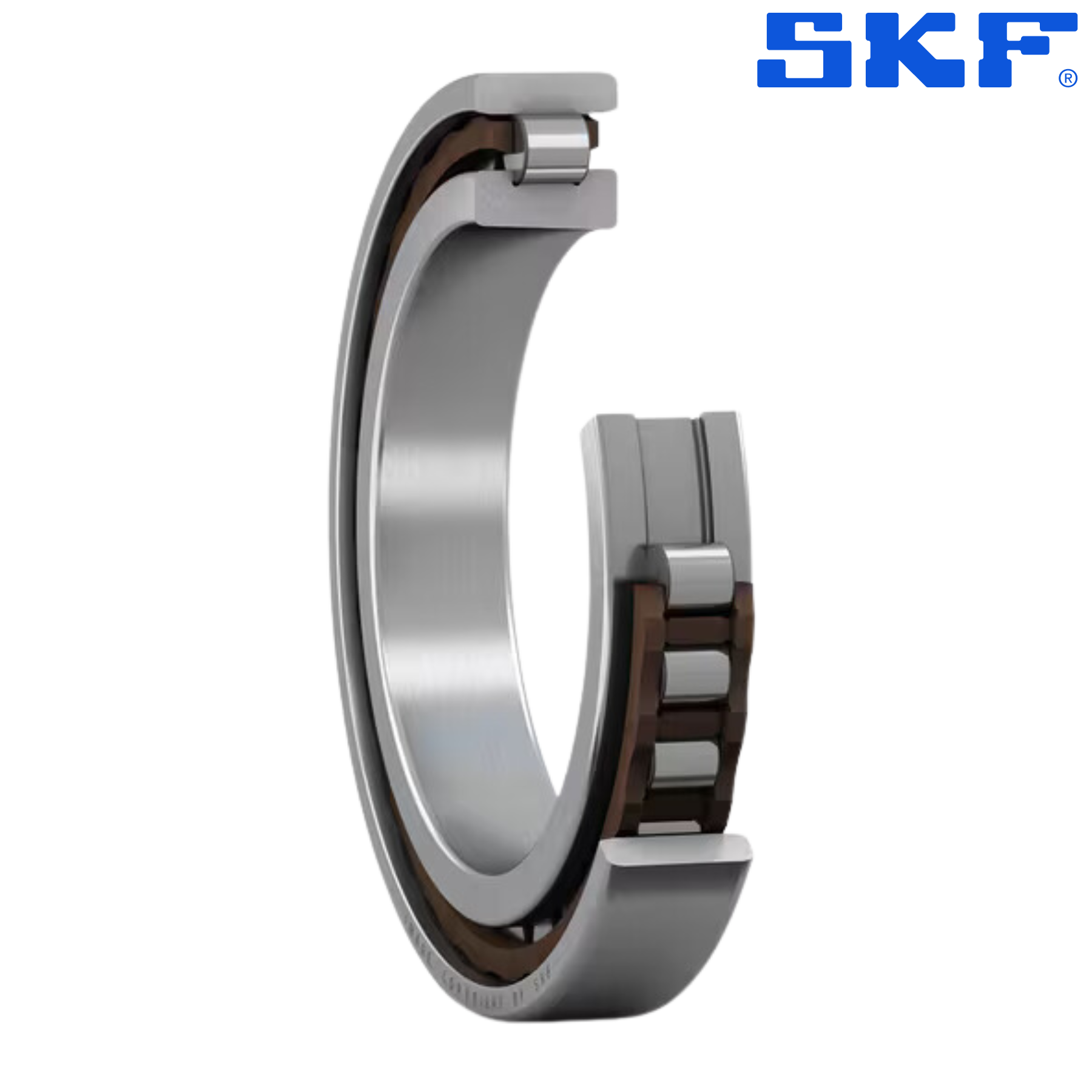

** Image is for representation purposes only
