Description

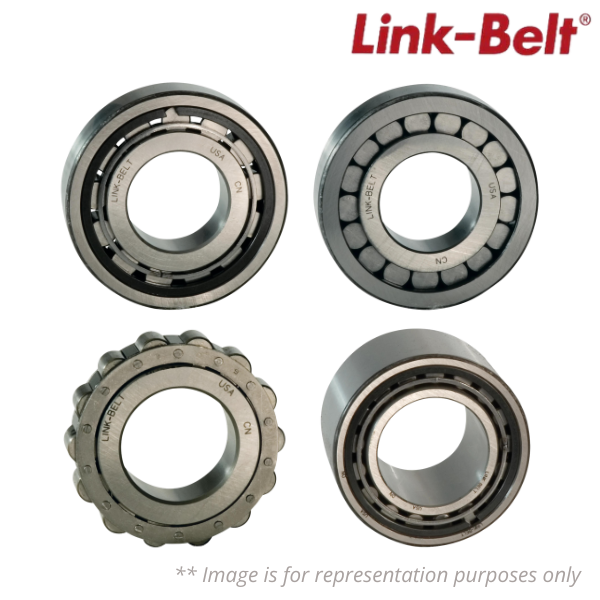

Brand - Link-Belt
Item Number - MU1210DX Link-Belt
Category - Unmounted Cylindrical Roller Bearings
Model - Series 1200 Unmounted Bearings
Outside Diameter (mm) - 90 mm
Basic Bearing Number - 1210
Bearing Width (mm) - 20 mm
Bore Size (mm) - 10 - 50 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm) - 82.8 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm) - 79.5 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm) - 79.49 mm
Inner Ring Bore Radius (mm) - 1.02 mm
Inner Ring Raceway Outside Diameter (mm) - 60.46 mm
Inner Ring Rib Outside Diameter (mm) - 63.96 mm
Inner Ring Type - Double Rib (U)
Net Weight (Kg) - 0.54884632
Outer Ring and Roller Assembly Under Roller Diameter (mm) - 60.51 mm
Outer Ring Raceway Inside Diameter (mm) - 79.55 mm
Outer Ring Rib Inside Diameter (mm) - 76.66 mm
Outer Ring Type - Single Rib Outer Ring (D)
Ring Width Series - Narrow (1)
Rolling Element - Cylindrical
Series Weight - Light (2)
Shaft Locking - DIRECT SHAFT MOUNT
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm) - 57.6 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm) - 60.4 mm
