Description
Brand - KAYDON
Item Number - MTO-540T KAYDON

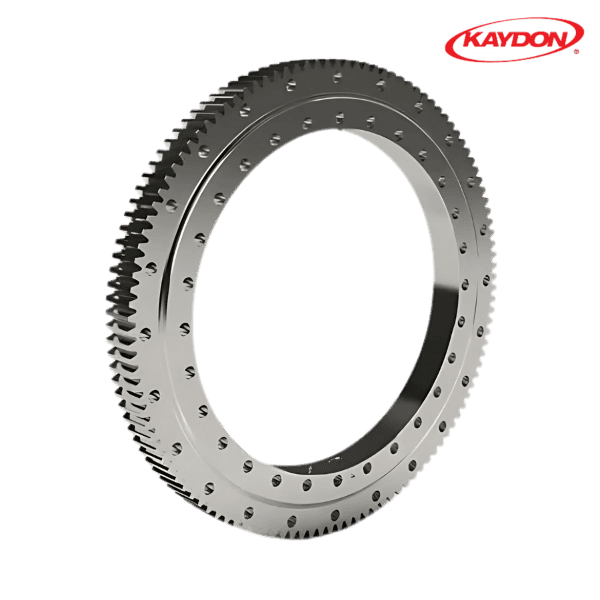

Category - Slewing Ring Bearing (MT Series)

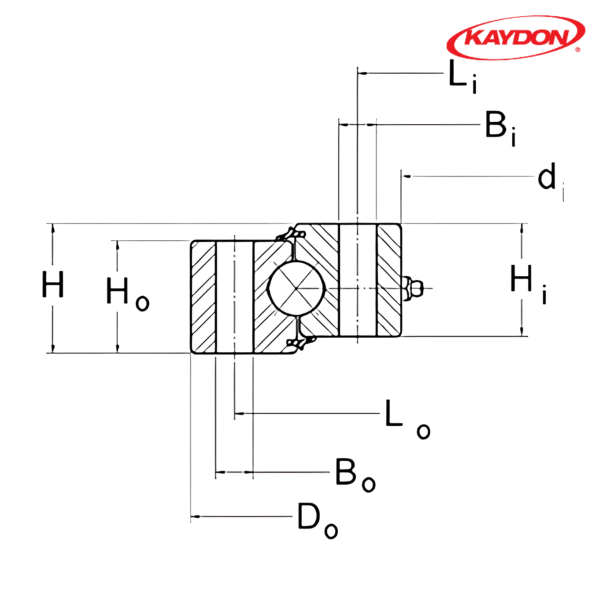

Outline Dimension (Do) inch - 29.65
Outline Dimension (di) inch - 21.25
Outline Dimension (H) inch - 2.375
Outline Dimension (Hi/Ho) inch - 2.063
Weight (G) kg - 81.64656
Mounting Holes Outer Ring (Lo) inch - 27.25
Mounting Holes Outer Ring (no) - 24
Mounting Holes Inner Ring (Li) inch - 22.75
Mounting Holes Inner Ring (ni) - 28
Moment Rating (Crm) ft-lbs - 232000
** Images are for representation purposes only
