MTO-210T KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - MTO-210T KAYDON
Category - Slewing Ring Bearing (MT Series with No Gear)

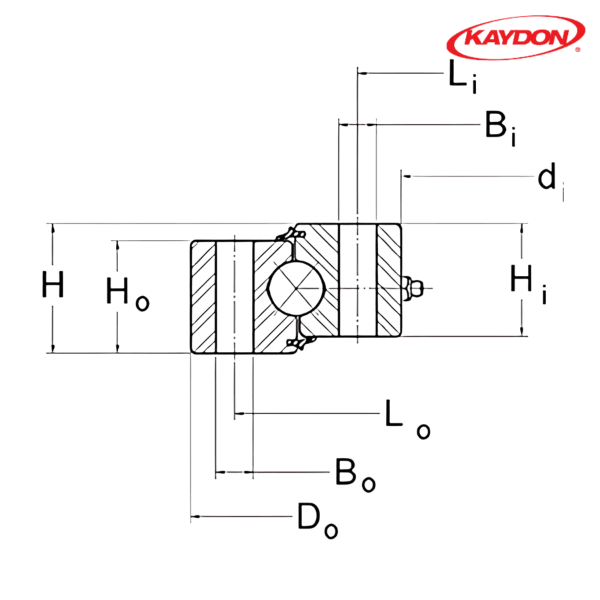

Outline Dimension (Do) inch - 14.37
Outline Dimension (di) inch - 8.268
Outline Dimension (H) inch - 1.575
Outline Dimension (Hi/Ho) inch - 1.496
Weight (G) kg - 17.236496
Mounting Holes Outer Ring (Lo) inch - 13.19
Mounting Holes Outer Ring (no) - 16
Mounting Holes Inner Ring (Li) inch - 9.449
Mounting Holes Inner Ring (ni) - 20
Moment Rating (Crm) ft-lbs - 44500

** Images are for representation purposes only
